BluePrint Engines

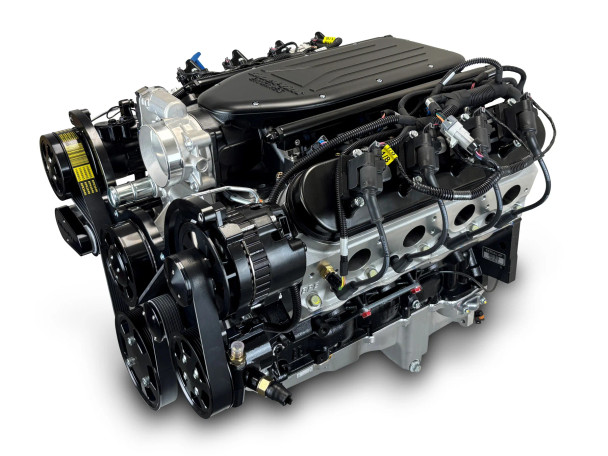

BluePrint Engines Pro Series LS 376CI 510HP Deluxe Dressed Crate Engine w/Black Pulley Kit PSLS3768CTFKB
- Part Number:
- PSLS3768CTFKB
- MPN:
- PSLS3768CTFKB
- Availability:
- Ships from Manufacturer
- Shipping:
- Free Over $98 In U.S. 48
- Type:
- Crate Engines
- Block:
- High Strength Cast Iron (LSX Style) Block
- Cylinder Heads:
- Aluminum
- Crankshaft:
- Nodular Iron Crankshaft
- Crankshaft Reluctor:
- 58x
- Crankshaft Stroke (in.):
- 3.622
- Rod Lenght (in.):
- 6.098
- Rod Bolts Tensile:
- 150,000 PSI
- Piston Bore (in.):
- 4.0662
- Piston Material:
- Hypereutectic
- Compression Ratio:
- 10.7:1
- Camshaft Included:
- Yes
- Electronics Inlcuded:
- Yes
- Quantity:
- Sold Individually
- Notes:
- This engine requires a non-weighted flex plate/flywheel.
Description
BluePrint Engines Pro Series LS 376CI 510HP Deluxe Dressed Crate Engine w/Black Pulley Kit PSLS3768CTFKB
Description:
- Horsepower & Torque: 510 Horsepower / 440 FT LBS
- Compression Ratio: 10.7:1
- Aluminum Heads
- Hydraulic Roller Cam
- Nodular Iron Crankshaft
- Hypereutectic Pistons
Block:
- BluePrint Engines High Strength Cast Iron (LSX Style) Block
- Increased Deck Thickness and Strength Webbing
- Extended Cylinder Skirt
- Priority Main Oiling
- 4.0662" Bore
- 6-Bolt Main
- 1-Piece Rear Main Seal
- Improved Water Jacket Design
- Utilizes OEM LS3 Front and Rear Covers
Rotating Assembly:
- Nodular Iron Crankshaft
- 3.622" Stroke
- 6.098" Connecting Rods w/ 150,000 PSI Bolts
- Hypereutectic Pistons
- Internally Balanced Front and Rear
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads - PS8015
- 69cc Chamber
- 2.165" Intake / 1.590" Exhaust Valves
- 259cc Intake / 102cc Exhaust Runners
Cam Specs:
- Cam Type: Hydraulic Roller Cam
- .612 Intake / .585 Exhaust Lift
- 225 Intake / 238 Exhaust Duration
- @.050-113 Degree Lobe Separation
Ignition Timing:
- Ignition Timing and Spark Advance are Controlled by BluePrint Engine Calibrated ECU
- Transmission Controller Required (ECU Does Not Offer Transmission Control)
Also Includes:
- Valve Covers
- Retro Fit Oil Pan
- Timing Cover
- Drive by Wire Throttle Body
- Engine Harness and ECU Kit
- LS3 Cast Aluminum Intake Manifold
- Injectors and Fuel Rail Kit
- Coil Packs
- Spark Plugs and Wiring
- Harmonic Balancer
- Gas Pedal
- Front Accessory Drive with Water Pump, Alternator, Power Steering Pump, and A/C Compressor
Engine Accessory Specs:
- Fuel Delivery Type: MPFI
- Spark Plug: Champion 3015
- Spark Plug Gap: .040"
- Harmonic Balancer: Non Weighted
- Flexplate/Flywheel: Non Weighted
- Stall Converter: 2200+
- Intake Manifold: GM LS3 Cast Aluminum
- Fuel Recommendation: 91 Octane
- Timing (Initial/Total Advance): Controlled by BluePrint Engines ECU
- Firing Order: 1,8,7,2,6,5,4,3
Notes:
- This engine requires a non-weighted flex plate/flywheel
- Recommended fuel: 91 Octane
- BluePrint Engines recommends a 2200+ RPM stall converter
- Retro fit oil pan will fit most 1955-1995 GM front engine, RWD, V8 cars
- Not for use in pollution-controlled vehicles or in dry sump applications
- The Included BluePrint Engines LS controller package contains a fully tested, calibrated, locked ECU, optimized for this specific engine. This package has undergone extensive testing for performance, reliability and the safety of you and your engine.
BluePrint engine the industry's best-in-class warranty for 30-months / 50,000 miles — with the extra confidence only BluePrint can provide. The warranty applies to individual or professional installations and is fully transferable.
Every BluePrint engine is Dyno tested and has strict parameters to pass and
be shipped to the customer. All parts are tested before being released for production:
• DC and Pneumatic assembly tools calibrated daily
• Fatigue Testing
• Durability Testing
• Random subassembly testing
• Quality system is ISO 9001: 2015 certified
• Traceable engine “DNA” electronic barcode record keeping of
manufacturing and performance data
Warranty Information
Standard Warranty: 30-months / 50,000 Miles - Fully Transferrable
Extended Warranty: 48-months / Unlimited Miles - Fully Transferrable
