Boss Hog Torque Converters

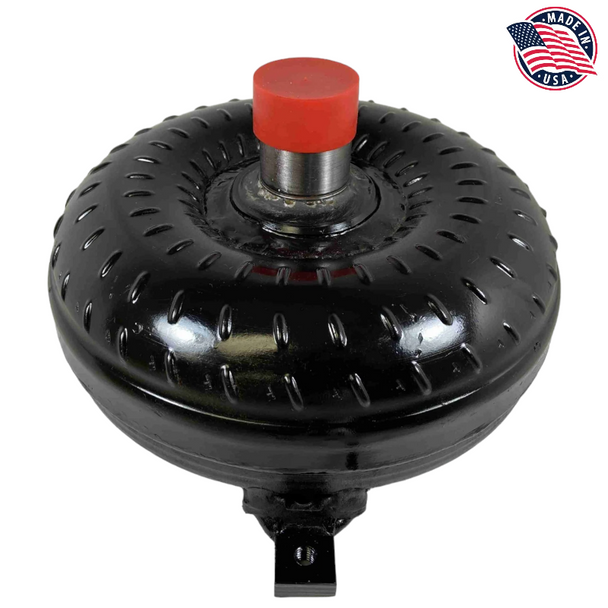

Boss Hog GM 700R4 4L60E LS Direct Fit Lock Up Torque Converter 298mm - Street Bandit Series

Availability:
Ships from Manufacturer ( 1-2 Week Lead Time )
Shipping:
Free Over $98 In U.S. 48
Type:
4L60E Torque Converters
Transmission:
700R4/4L60E
Diameter Core (in.):
9.6
Bellhousing (mm):
298
Bolt Pattern (in.):
11.063
Balanced:
Yes
Anti-Ballooning Plate:
No
Mounting Hardware Included:
No
Notes:
ALL Advertised Stalls are based on a Specific Vehicle’s Setup. All stall Ranges Will Vary depending on your vehicle’s setup. Please contact us for more information
  • Boss Hog GM 700R4 4L60E LS Direct Fit Lock Up Torque Converter 298mm - Street Bandit Series
  • Boss Hog GM 700R4 4L60E LS Direct Fit Lock Up Torque Converter 298mm - Street Bandit Series
  • Boss Hog GM 700R4 4L60E LS Direct Fit Lock Up Torque Converter 298mm - Street Bandit Series
  • Boss Hog GM 700R4 4L60E LS Direct Fit Lock Up Torque Converter 298mm - Street Bandit Series
  • Boss Hog GM 700R4 4L60E LS Direct Fit Lock Up Torque Converter 298mm - Street Bandit Series
  • Boss Hog GM 700R4 4L60E LS Direct Fit Lock Up Torque Converter 298mm - Street Bandit Series
$609.00

Description

Boss Hog GM 700R4 4L60E LS Direct Fit Lock Up Torque Converter 298mm - Street Bandit Series

This Converter is one of The Lightest Weight Converters on the market. In some Cases, by more than 20 lbs for Huge Power Gains through Less Rotational Mass.

GM
700R4
4L60E
STREET BANDIT SERIES
298mm for LS Type Engines
** This Converter is a Direct Fit to an LS Engine
Super Lightweight Lock Up Converter
9.6 inch Core
Factory LS Bolt Circle: 11.063 inches
30 Spline Input Shaft
Hardened Chrome Moly Hub
Torrington Style Incased Bearings
Modified Heavy Duty Stator
Extreme Duty Lock Up
* Boss Hog Deleted the Need for the End of the Input Shaft O-Ring
* Lock Up is sealed on the back side of our Turbine Hub
1.703 inch Crank Pilot * Extended for the LS Precision CNC Machined
Bolt Size: 3/8 X 16 TPI (GRADE 8 ONLY)
No – Anti-Balloon Plates
4 Corner Tac Welded Fins or Furnish Brazed
Quality Inspections through out Every Step
For Choppy Cams and light weight vehicles
Leak & Pressure Tested
Digitally Balanced
TIP : Use Old School Type F Transmission Fluid For Best Results

It is recommended to upgrade to the “Outlaw” series torque converter if you have any power adders like Nitrous (NOS), Turbocharger(s), Supercharger, or a Trans Brake.

If you are looking for a custom-built torque converter with specific stall speed, a custom mounting configuration, or another unique requirement, give us a call.

Advertised stalls are based on a specific vehicle’s setup. All stall ranges will vary depending on your vehicle’s setup. Please contact us for more information.





View AllClose

Warranty Information

ACC Performance Product Plus, Inc. warrants its Torque Converters against Manufacturers Defects for a period of 90 days from the date of purchase. The Warranty will include bearings, hubs, impeller, stator, sprag, & turbine. This warranty covers Boss Hog Parts only. Boss Hog parts are for off road use only and are not considered OEM replacement. Boss Hog parts are built for modified High Performance aftermarket vehicles only. Note: Improper Application, Improper Installation, Improper Fluids, Miss-Picked stall ranges, and Torque Converters that have been tampered with prior to our inspection is NOT Warranty.
