DIAMOND PISTONS

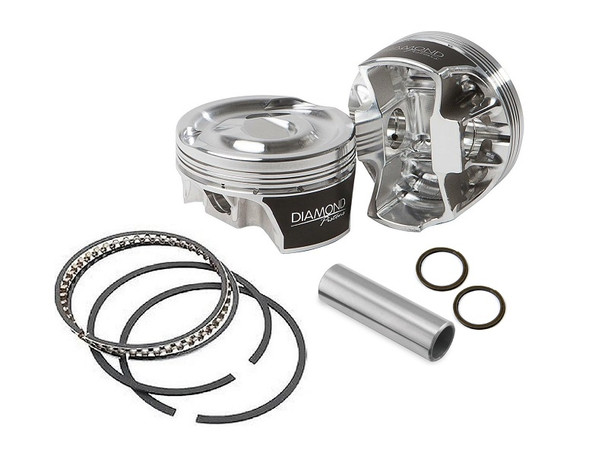

Diamond Gen V LT4 4.065 Bore 3.622 Stroke -7.0cc Dome Piston Kit Competition Series 11532-R2-8
- PART NUMBER:
- 11532-R2-8
- MPN:
- 11532-R2-8
- Availability:
- Ships from manufacturer
- Shipping:
- Free Over $98 In U.S. 48
- Type:
- Dome Pistons
- Bore (in.):
- 4.065
- Stroke (in.):
- 3.622
- Rod Length (in.):
- 6.098
- Compression Height (in.):
- 1.331
- Crown Volume (cc):
- -7.0
- Compression Ratio w/65cc:
- 10:1
- Wrist Pins Included:
- Yes
- Wrist Pin Material:
- 8620
- Pin Diameter (in.):
- 0.943
- Pin Length (in.):
- 2.250
- Alloy:
- 2618
- Rings Included:
- Yes
- Ring Sizes:
- 1.2mm, 1.2mm, 3.0mm
- Weight (g):
- 567
- Int Valve Pocket Depth (in.):
- 0.200
- Exh Valve Pocket Depth (in.):
- 0.200
- Moly Coated Skirt:
- Yes
- For Use w/ Power Adder:
- Yes
- Quantity:
- Sold as set of 8
- Notes:
- For use with Gen V Heads
On Sale
Description
Diamond Gen V LT4 4.065 Bore 3.622 Stroke -7.0cc Dome Piston Kit Competition Series 11532-R2-8
Diamond Pistons Competition Series pistons are for those looking to take their engine to a whole new level of power.
Features:
- Designed for GM Gen V LT1/LT4 engine base
- Piston crowns designed to work with OEM direct injection
- 3D milling on piston crowns for ready to install finish
- Offset pins for quiet operation
- Inboard forging design for maximum strength
- Moly skirt coating for friction loss and skirt wear protection
- Top ring down dimension: .300"
- Ratios figured for 4.185 x .053 head gasket
- Premium 1.2mm x 1.2mm x 3.0mm ring package included
- Premium 8620 .180W wrist pins chamfered for roundwire locks included
- Valve pocket depth: 0.200" intake and .200"
- 2618 material for High HP/Boost applications
