CP-Carrillo

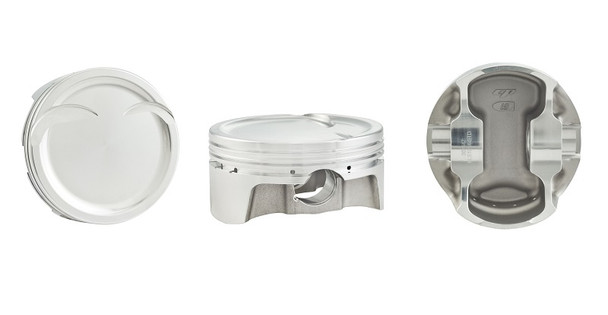

CP Bullet LS 5.3L 3.780 Bore 4.000 Stroke -13.1cc Dish Piston Kit BLS1014-STD

PART NUMBER:
BLS1014-STD
MPN:
BLS1014-STD
Availability:
Ships from Manufacturer
Shipping:
Free Over $98 In U.S. 48
Type:
Dish Pistons
Bore (in.):
3.780
Stroke (in.):
4.000
Rod Length (in.):
6.125
Compression Height (in.):
1.110
Crown Volume (cc):
-13.1
Compression Ratio w/62cc:
9.5:1
Wrist Pins Included:
Yes
Pin Diameter (in.):
0.927
Pin Length (in.):
2.250
Alloy:
2618
Rings Included:
Yes
Ring Sizes:
1.5mm, 1.5mm, 3.0mm
Weight (g):
Call
For Use w/ Power Adder:
Yes
Notes:
For use with 15 Degree Valve Angle LS Heads
$1,016.40

Description

CP Bullet LS 5.3L 3.780 Bore 4.000 Stroke -13.1cc Dish Pistons & Rings Kit

CP-Carrillo Bullet LS 5.3L pistons are designed specifically for LS 5.3L 15° heads. Pistons are proudly made in the USA from 2618 forgings and are available with -3.5cc flat tops and -13.1cc dish. 1.5mm steel gas nitride top ring, 1.5mm Napier second ring, 3.0mm oil ring and include .945 x 2.250 or .927 x 2.250 pins with .180 wall standard.
