DART MACHINERY

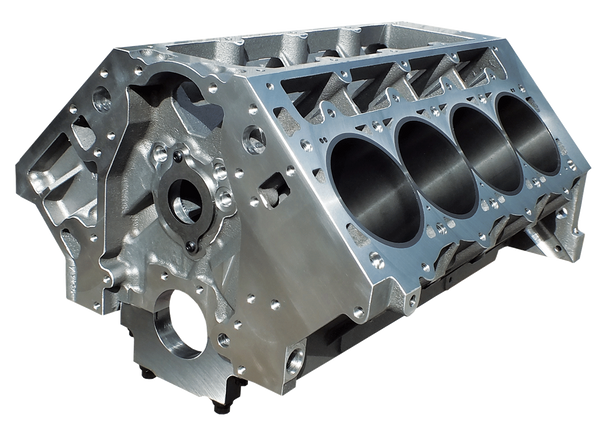

DART LS Next Gen III Aluminum Engine Block 31937222 - Raised Cam, 9.450" Deck, 4.125" Bore

PART NUMBER:
31937222
MPN:
31937222
Availability:
Ships from manufacturer
Shipping:
Free Over $98 In U.S. 48
Type:
4.125 Bore Blocks
Material:
RMR Cast Aluminum Alloy
Deck Height (in.):
9.450
Bore (in.):
4.125
Main Bearing Size:
Stock
Main Cap Material:
Steel
Main Cap Type:
4-Bolt
Cam Location:
Raised 0.388
Lifter Bore Diameter (in.):
.842 (Stock)
Freeze Plugs:
Screw-in
Rear Seal:
Stock
Weight (lbs):
115
Fully Skirted:
No
On Sale
  • DART LS Next Gen III Aluminum Engine Block 31937222 - Raised Cam, 9.450" Deck, 4.125" Bore
  • DART LS Next Gen III Aluminum Engine Block 31937222 - Raised Cam, 9.450" Deck, 4.125" Bore
  • DART LS Next Gen III Aluminum Engine Block 31937222 - Raised Cam, 9.450" Deck, 4.125" Bore
Now: $6,887.49
Was: $7,249.99

Description

DART LS Next Gen III Aluminum Engine Block 31937222 - Raised Cam, 9.450" Deck, 4.125" Bore

Darts LS Next Aluminum Blocks are designed from a clean slate approach that addresses shortcomings of the factory engines. These blocks are great for hot rodders, drag racers, circle track, off-road and hi-performance marine enthusiasts. Conventional style main caps and oil pans help address the windage and oil control issues seen in factory engines utilizing seperated crankcase bays.

Features

  • Priority Main Oiling System
  • Skirted and Non-Skirted Design Options
  • Cylinder Barrels Extended .375" at the Bottom
  • Standard or Raised .388" Cam Location
  • Available in Deck Heights from 9.240" up to 9.950"
  • Extra Thick Deck Ensures Reliable Head Gasket Seal
  • Blind Head Bolt Holes Available in 7/16" or 1/2"
  • Scalloped Water Jackets Increase Flow Around Cylinders for Better Cooling
  • Clearence for 4.100" Stroke with Steel Rods
  • Splayed Outer Bolts on Middle Main Bearing Caps
  • LS and Gen I Style Motor Mounts
  • Provisions for OE Roller Lifters, Lifter Trays and Cam
  • Uses Stock Timing Cover and Rear Cover
  • All OE Bolt Holes for Starter, Water Pump, Etc.
  • Driver or Passenger Side Starter Mounts (Except with Skirted Version)

Engine Parts Kit 32000017
