DART MACHINERY

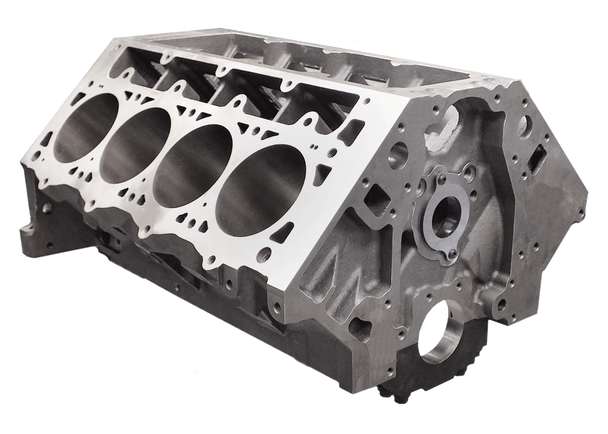

DART LS Next2 Gen III Iron Engine Block 31837121-WW2 - 9.450" Deck, 4.000" Bore

PART NUMBER:
31837121-WW2
MPN:
31837121-WW2
Availability:
Ships from manufacturer
Shipping:
Free Over $98 In U.S. 48
Type:
4.000 Bore Blocks
Material:
High Nickel 220 BHN Cast Iron
Deck Height (in.):
9.450
Bore (in.):
4.000
Main Bearing Size:
Standard
Main Cap Material:
Steel
Main Cap Type:
4-Bolt
Main Cap Size (in.):
2.750
Cam Location:
Stock
Lifter Bore Diameter (in.):
.842 (Stock)
Freeze Plugs:
Press Fit
Rear Seal:
Stock
Weight (lbs):
227
On Sale
  • DART LS Next2 Gen III Iron Engine Block 31837121-WW2 - 9.450" Deck, 4.000" Bore
  • DART LS Next2 Gen III Iron Engine Block 31837121-WW2 - 9.450" Deck, 4.000" Bore
  • DART LS Next2 Gen III Iron Engine Block 31837121-WW2 - 9.450" Deck, 4.000" Bore
Now: $5,177.49
Was: $5,449.99

Description

DART LS NEXT² Cast Iron Blocks

The ultimate upgrade for adding strength in the Aluminum or Iron LS Next platform is the LS NEXT² upgrade. This offers larger Billet Steel main caps using Ford (2.750″) or LS (2.560″) mains, that feature 1/2” main studs giving superior clamping force for even higher power levels. Blocks come machined to accept fully counterweighted crankshafts.

FEATURES:

  • 9.240”-9.450” deck height with standard cam.
  • 9.240″, 9.450”– 9.800” deck height with .388” raised cam.
  • Available in Iron or Aluminum (skirted andnon-skirted) blocks with LS (2.560”) or Ford (2.750”) main sizes for improved crankshaft stability.
  • Larger 4 bolt Billet Steel main caps.
  • Clearanced for center counterweighted crankshafts.
  • Priority main oiling system with two lifter crossovers and restrictor provisions
  • Siamesed cylinder bores with extra thick walls
  • Cylinder barrels extended .375" at the bottom.
  • Extra thick decks ensure reliable head gasket seal.
  • Blind 1/2' head bolt holes.
  • Scalloped water jackets increase flow around cylinders for better cooling.
  • Clearance for 4.100" stroke w/ steel rods.
  • Clearanced for center counterweighted crankshafts.
  • 1/2" main studs, with 4 splayed outer bolts on middle main bearing caps.
  • LS style motor mounts.
  • Provisions for OE stock roller lifter and cam.
  • Uses stock timing covers and stock rear cover.
  • All OE bolt holes for starter, water pump, etc.
  • Driver or passenger side starter mounts
  • Parts kit included (Part#32000033). Parts kits do include cam bearings.
