DART MACHINERY

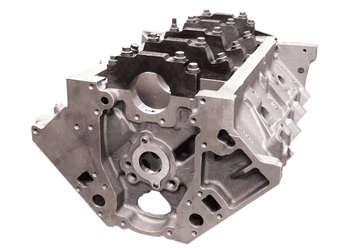

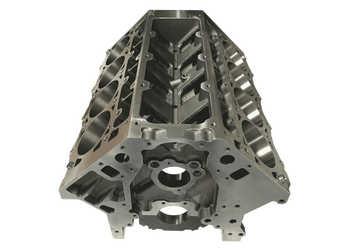

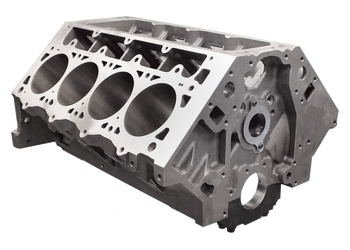

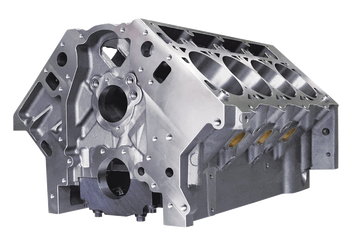

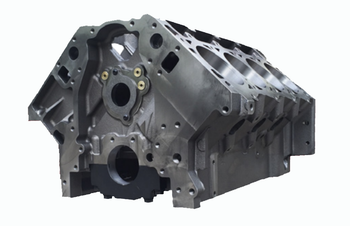

DART SHP LS Gen III Iron Engine Block 31867211 - 9.240" Deck, 4.125" Bore
- PART NUMBER:
- 31867211
- MPN:
- 31867211
- Availability:
- Ships from manufacturer
- Shipping:
- Free Over $98 In U.S. 48
- Type:
- 4.125 Bore Blocks
- Material:
- Cast Iron
- Deck Height (in.):
- 9.240
- Bore (in.):
- 4.125
- Main Bearing Size:
- Stock
- Main Cap Material:
- Steel
- Main Cap Type:
- 4-Bolt
- Cam Location:
- Stock
- Lifter Bore Diameter (in.):
- .842 (Stock)
- Freeze Plugs:
- Press Fit
- Rear Seal:
- Stock
- Weight (lbs):
- 227
On Sale
Description
DART SHP LS Next Cast Iron Blocks
Darts SHP LS Next Iron Blocks are designed for high performance and medium duty applications. The SHP blocks are the ideal starting point for hot rodders, drag racers, circle track, off-road, and marine applications.
Features
- Priority Main Oiling System with Two Lifter Crossovers and Restrictor Provisions
- Accepts Factory and Aftermarket Oil Pans
- Siamesed Cylinder Bores with Extra Thick Walls
- Cylinder Barrels Extended .375" at the Bottom
- Thick Deck Ensures Reliable Head Gasket Seal
- Blind Head Bolt Holes Available in 7/16" or 1/2"
- 6-Bolt Per Cylinder Capability
- Scalloped Water Jackets Increase Flow Around Cylinders for Better Cooling
- Clearence for 4.100" Stroke with Steel Rods
- Splayed Outer Bolts on Middle Main Bearing Caps
- Provisions for LSX Roller Lifters and Cam
- Uses Stock Timing Cover and Rear Cover
- All OE Bolt Holes for Starter, Water Pump, Etc.
Parts Kit 3200018
Note: Ocean Freight is available to Australia! Contact us for details.
Warranty Information
Dart Machinery, Ltd. warrants to the original purchaser its products to be free from defects in materials and workmanship under normal and recommended use and that the products
will conform to Darts published specifications or, if applicable, Buyers specifications to the extent accepted by Dart in a separate writing. Darts obligation under this warranty shall be limited
to repair or replacement, at Darts option, of any parts or products which may prove defective under normal use within six (6) months from the date of sale, and which the examination of Dart
Machinery, Ltd. reveals to its satisfaction that the products in question are in fact defective.
THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE AND OF
ALL OTHER OBLIGATIONS OR LIABILITIES ON THE PART OF DART MACHINERY, LTD. THE PURCHASER ACKNOWLEDGES THAT HE IS NOT RELYING ON DART MACHINERY, LTD.S SKILL OR
JUDGMENT TO SELECT OR FURNISH GOODS SUITABLE FOR ANY PARTICULAR PURPOSE AND THAT THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE
HEREOF. THE WARRANTY CONTAINED HEREIN SHALL NOT APPLY TO ANY PART OR PRODUCT WHICH HAS BEEN SUBJECT TO ACCIDENT, NEGLIGENCE, ALTERATION, ABUSE, OR MISUSE.
DART MACHINERY, LTD. MAKES NO WARRANTY WHATSOEVER IN RESPECT TO ACCESSORIES OR PARTS NOT SUPPLIED BY DART MACHINERY, LTD. THIS WARRANTY SHALL APPLY ONLY
WITHIN THE BOUNDARIES OF THE CONTINENTAL UNITED STATES.
Any affirmation of fact or promise made by Dart Machinery, Ltd. shall not be deemed to create an express warranty that the product shall conform to the affirmation or promise; any description of
the product is for the sole purpose of identifying it and shall not be deemed to create an express warranty that the product shall conform to such description; any sample or model is for illustrative
purposes only and shall not be deemed to create an express warranty that the product shall conform to the sample or model; and no affirmation or promise, or description, or sample or model
shall be deemed part of the basis of the bargain.
