DIAMOND PISTONS

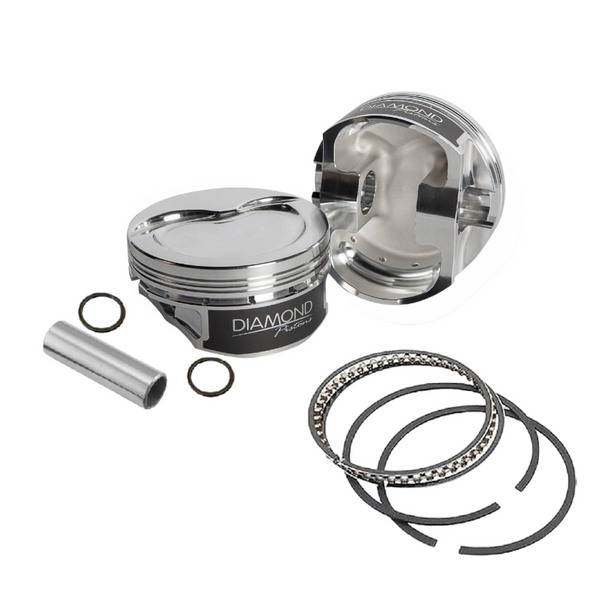

Diamond LS 4.010 Bore 3.622 Stroke -13.7cc Dish Piston Kit 11508-R2-8

PART NUMBER:

11508-R2-8

UPC:

MPN:

11508-R2-8

Availability:

Ships from Manufacturer

Shipping:

Free Over $98 In U.S. 48

Type:

Dish Pistons

Bore (in.):

4.010

Stroke (in.):

3.622

Rod Length (in.):

6.125

Compression Height (in.):

1.304

Crown Volume (cc):

-13.7

Compression Ratio w/70cc:

9.0:1

Wrist Pins Included:

Yes

Wrist Pin Material:

8620

Pin Diameter (in.):

0.927

Pin Length (in.):

2.500

Alloy:

2618

Rings Included:

Yes

Ring Sizes:

1.2mm, 1.2mm, 3.0mm

Weight (g):

call

Int Valve Pocket Depth (in.):

0.176

Exh Valve Pocket Depth (in.):

0.105

Moly Coated Skirt:

Yes

For Use w/ Power Adder:

Yes

Quantity:

Sold as set of 8

Notes:

For use with 15 Degree Valve Angle LS Heads
