DIAMOND PISTONS

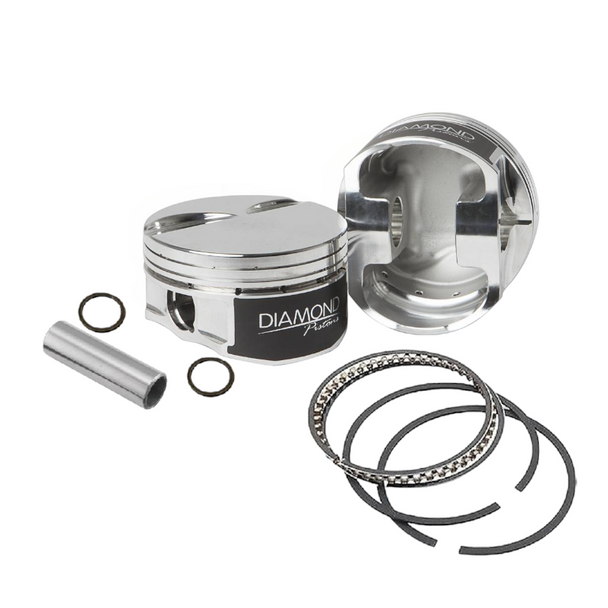

Diamond LS 4.070 Bore 4.000 Stroke -2cc Flat Top Piston Kit 11546-R1-8-H

PART NUMBER:

11546-R1-8-H

UPC:

MPN:

11546-R1-8-H

Shipping:

Free Over $98 In U.S. 48

Type:

Flat Top Pistons

Bore (in.):

4.070

Stroke (in.):

4.000

Rod Length (in.):

6.125

Compression Height (in.):

1.115

Crown Volume (cc):

-2

Compression Ratio w/70cc:

11.4:1

Wrist Pins Included:

Yes

Wrist Pin Material:

Tool Steel

Pin Diameter (in.):

0.927

Pin Length (in.):

2.500

Alloy:

2618

Rings Included:

Yes

Ring Sizes:

1.2mm, 1.2mm, 3.0mm

Weight (g):

423

Int Valve Pocket Depth (in.):

0.176

Exh Valve Pocket Depth (in.):

0.105

Moly Coated Skirt:

Yes

For Use w/ Power Adder:

Yes

Quantity:

Sold as set of 8

Notes:

For use with 15 Degree Valve Angle LS Heads
