EARL'S

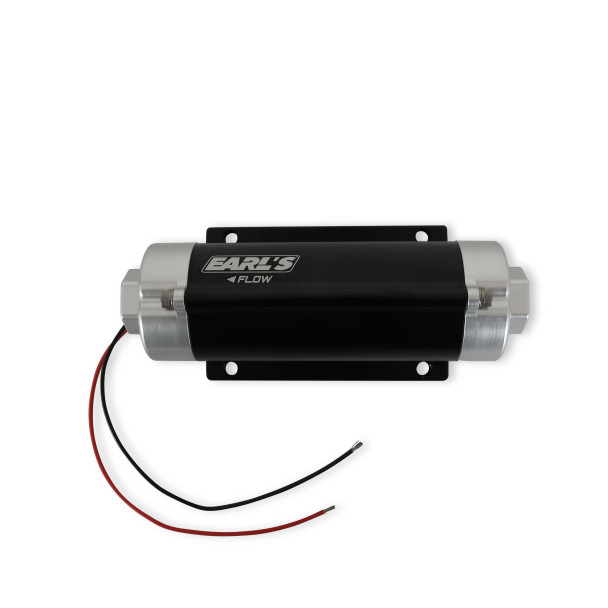

Earl's 100 gph HP In-Line Fuel Pump 1200890ERL

PART NUMBER:
1200890ERL
MPN:
1200890ERL
Availability:
Ships from Manufacturer
Shipping:
Free Over $98 In U.S. 48
Type:
Electric In-Line Fuel Pumps
Free Flow Rate (LPH@8PSI):
363
Inlet/Outlet Qty:
1/1
Inlet:
8 AN O-Ring - 3/4-16 SAE
Outlet:
8 AN O-Ring - 3/4-16 SAE
Quantity:
Sold individually
Notes:
A bypass style regulator and return line are required. NOT FOR USE WITH METHANOL! This pump is not designed to use a standard conical seat style union in the inlet or outlet of the pump.
  • Earl's 100 gph HP In-Line Fuel Pump 1200890ERL
  • Earl's 100 gph HP In-Line Fuel Pump 1200890ERL
  • Earl's 100 gph HP In-Line Fuel Pump 1200890ERL
  • Earl's 100 gph HP In-Line Fuel Pump 1200890ERL
$471.95

Description

Earl's 100 gph HP In-Line Fuel Pump 1200890ERL

Street/Strip Carb or EFI Applications Supports up to 900 EFI or 1050 Carb HP Compatible with Pump Gas*, Race gas, Diesel or E85

Earl's™ In-Line Billet Fuel Pumps are designed to be the perfect companion to your carbureted or fuel injected race car, off-road truck or any engine needing fuel! The HP™ fuel pumps feature OEM gerotor technology which yields lightweight, quiet operation and 100,000+ mile durability in a cost effective, attractive package. HP™ fuel pumps are Race gas, E-85 and diesel compatible and can be used in racing applications with 18.5 volt charging systems up to 80 psi.

*Pump gas compatible for intermittent or under 90 degree ambient temperature use Pump gas use recommendations: • This pump is compatible with pump gas, but is not recommended for street driven vehicles where the ambient temperature is regularly above 90 degrees • For street driven vehicles in high temps with pump gas, Earl's recommends part numbers 1200600ERL or 12-800 for optimum hot fuel handling• Proper fuel system engineering is critical for maximum performance. Please see Holley Fuel System Chart for information about proper installation of your fuel system. Will work with E-85 and Diesel! These pumps do not have an internal bypass. A bypass style regulator and return line are required. NOT FOR USE WITH METHANOL! This pump is not designed to use a standard conical seat style union in the inlet or outlet of the pump. Example: Part # AT981508ERL. Use of this style fitting will block flow and WILL lead to poor performance and pump failure. The ONLY correct fitting to use is a contoured port fitting with an O-ring seal such as : Part # AT985008ERL.

Application Universal
Brand Earl's
Clearance Category Air and Fuel Delivery
Emission Code 5
Forced Induction HP@43PSI 700
Forced Induction HP@60PSI 600
Forced Induction HP@8PSI 800
Fuel System Carbureted
  EFI
Fuel Type Diesel
  E85
  Gasoline
GPH@43PSI 76
GPH@60PSI 70
GPH@8PSI 100
Inlet Size 8 AN O-Ring - 3/4-16 SAE
LPH@43PSI 287
LPH@60PSI 265
LPH@8PSI 363
Material Aluminum
Naturally Aspirated HP@43PSI 900
Naturally Aspirated HP@60PSI 800
Naturally Aspirated HP@8PSI 1050
Outlet Size 8 AN O-Ring - 3/4-16 SAE
Product Type Fuel Pump
Pump Body Color Black Anodized
Sale Category Air and Fuel Delivery
Warranty Limited 90 Day
UPC 090127744390
Part Number 1200890ERL
