Edelbrock

Edelbrock E-Force Gen VI TVS2300 1998-02 Camaro/GTO LS Swap Cathedral Port Universal Supercharger Kit w/o Tune 15450

PART NUMBER:
15450
UPC:
085347154500
MPN:
15450
Availability:
Ships from Manufacturer
Shipping:
Free Over $98 In U.S. 48
TYPE:
Twin Screw Supercharger Kits
ENGINE BLOCK STYLE:
Stock
SUPERCHARGER PULLEY INCLUDED:
Yes
PULLEY STYLE:
Serpentine
DAMPER INCLUDED:
Yes
CRANKSHAFT PULLEY GROOVES:
6-groove, serpentine
SUPERCHARGER FINISH:
Black powdercoated
COMPUTER CHIP/PROGRAMMER INCLUDED:
No
MULTI-PORT FUEL RAILS INCLUDED:
Yes
FUEL INJECTORS INCLUDED:
Yes
FUEL PUMP INCLUDED:
No
REGULATOR INCLUDED:
No
WIRING HARNESS INCLUDED:
Yes
LINKAGE INCLUDED:
No
INTERCOOLER INCLUDED:
Yes
PTFE LINED ROTORS:
No
SUPERCHARGER MODEL:
Eaton Gen VI TVS 2300
BELT TENSIONER INCLUDED:
Yes
QUANTITY:
Sold as a Kit
NOTES:
Features Camaro (Gen IV 1998-02) belt offset, will require Camaro accessory drive. A universal heat exchanger and custom tuning is also required.
$8,322.87

Description

Edelbrock E-Force Gen VI TVS2300 1998-02 Camaro/GTO LS Swap Cathedral Port Universal Supercharger Kit w/o Tune 15450

The Edelbrock Universal Supercharger System part #15450 is designed for street rods and muscle cars with Chevy Gen III LS Cathedral Port cylinder heads and a Camaro/GTO (Gen IV 1998-02) belt offset. The Edelbrock system is designed to provide instant and reliable horsepower with low boost for minimum stress on the engine. Its compact design fits under the stock hood on most applications and complements the clean look of any engine compartment. This system requires the use of a universal heat exchanger (sold separately). The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft.

Edelbrock E-Force universal supercharger systems include the following components:

* Supercharger manifold assembly
* Cast aluminum tensioner/idler bracket
* Cast aluminum engine valley tray
* Heavy-duty automatic belt tensioner
* Dual, high-capacity, bar and plate, intercoolers
* High-flow 95mm mass airflow sensor housing
* Extruded aluminum fuel rails with -6 AN lines
* Custom-molded intercooler hoses with quick-connect fittings
* Electric intercooler water pump
* Intercooler recovery tank
* Fuel injectors
* Steel idler pulleys with heavy-duty, high-speed bearings
* High-flow conical air filter
* Edelbrock aluminum engine covers
* Plug and play, electrical harness, installation hardware
* 3.5 in. supercharger pulley

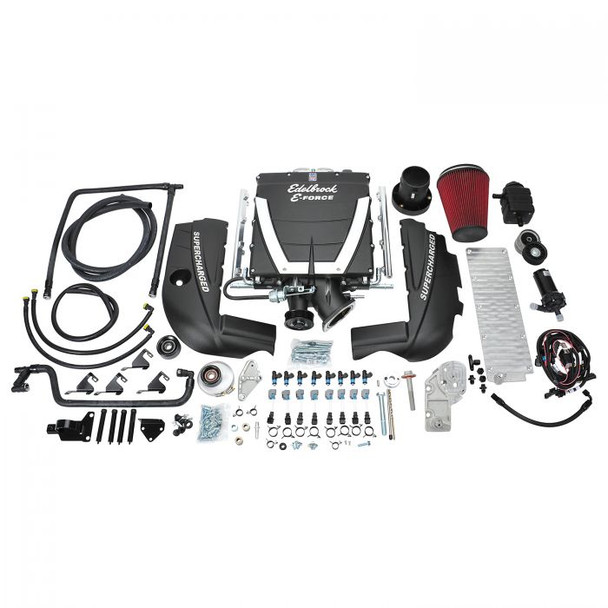

( Image is a representation of this item.
Actual item may vary.)







View AllClose

Warranty Information

It is the constant endeavor of the Edelbrock, LLC to give our customers the highest quality products obtainable. Edelbrock warrants each new supercharger kit to be free from defects in both workmanship and material for a period of three (3) years from the date of purchase, provided that the product is properly installed, subjected to normal use and service and that the product is not modified or changed in any way, nor damaged because of negligence by customer or installer or used for racing or competition purposes. Our warranty service and repair facility is located at 8649 Hacks Cross Rd, Olive Branch, MS. 38654. Customers who believe they have a defective product should either return it to the dealer from which it was purchased or ship it directly to Edelbrock, LLC along with proof of purchase and a complete description of the problem. The product must be returned freight prepaid. If a thorough inspection of the product by the factory indicates defects in workmanship or material, our sole obligation shall be to repair or replace the product. Warranty covers only the product itself and not the cost of installation or removal.
