FRAGOLA

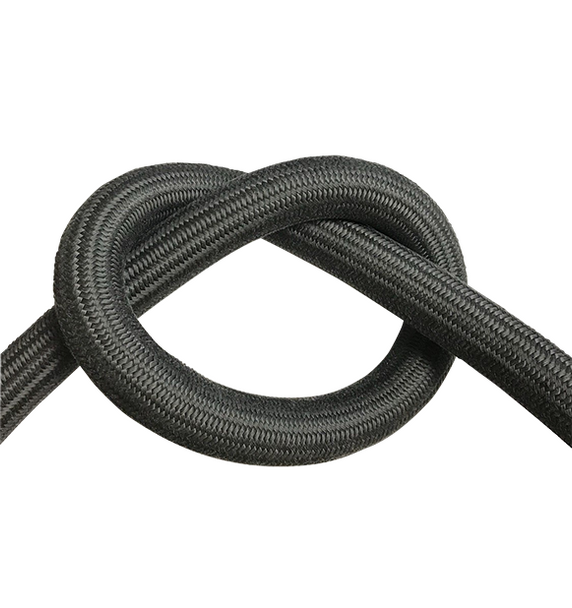

Fragola -12 AN Race-Rite Hose P.T.F.E. Core
- PART NUMBER:
- 2700012
- MPN:
- 2700012
- Availability:
- Ships from Manufacturer
- Shipping:
- Free Over $98 In U.S. 48
- Type:
- Fuel Line Hose
- Series:
- Race-Rite
- Finish:
- Black
- Size:
- -12 AN
- Length:
- Bulk (Select by quantity)
- Fitting Style:
- Crimp-On
- Max Pressure (PSI):
- 420
- Notes:
- Select the number of feet that you want by the quantity. Ex. Quantity 10 = 10 continuous feet
Description
Fragola -12 AN Race-Rite Hose P.T.F.E. Core
Description
FRAGOLA’s PREMIER HOSE: Our Race-Rite & Race-Rite Pro Hose features an enlarged inner diameter with a smoothbore conductive P.T.F.E. core that utilizes a convoluted exterior and black Aramid braid cover. Making it compatible with all fluids, capable of tight bend radiuses, and higher flow rates.
RACE-RITE HOSE – FUEL, ATF, & COOLANT HOSESmoothbore conductive P.T.F.E. core is resistant to fuel permeation.
Convoluted Exterior allows for tighter bend radius.
60% lighter than our 8400 Series Black Nylon Race Hose.
Features a true to size I.D. for improved flow rate.
Works with all fluids, including Ethanol type fuels, ATF, Coolant, & Oils.
Use with our Race-Rite Crimp-on Hose Ends.
Operating range -65° -500°F
Convoluted Exterior allows for tighter bend radius.
60% lighter than our 8400 Series Black Nylon Race Hose.
Features a true to size I.D. for improved flow rate.
Works with all fluids, including Ethanol type fuels, ATF, Coolant, & Oils.
Use with our Race-Rite Crimp-on Hose Ends.
Operating range -65° -500°F
Technical Specifications
Part | A-N Size | Working Pressure | Vacuum Rating | Min. Bend Radius | Weight Per Ft. |
2700004 | -4 | 900 psi. | 28 in. hg. | 1.5″ | 0.04 lbs |
2700006 | -6 | 800 psi. | 28 in. hg. | 2″ | 0.07 lbs |
2700008 | -8 | 600 psi. | 28 in. hg. | 3″ | 0.09 lbs |
2700010 | -10 | 500 psi. | 28 in. hg. | 4″ | 0.14 lbs |
2700012 | -12 | 420 psi. | 28 in. hg. | 5″ | 0.16 lbs |
2700016 | -16 | 400 psi. | 28 in. hg. | 6″ | 0.24 lbs |
