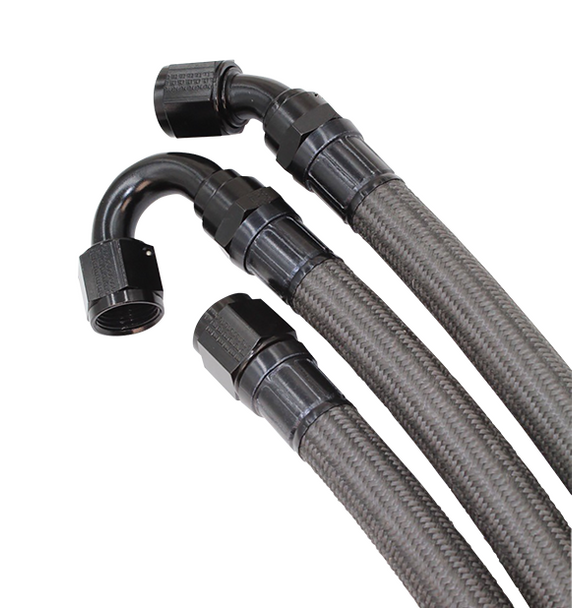

Fragola -4 AN Race-Rite Hose P.T.F.E. Core

PART NUMBER:: 2700004
UPC:
MPN:: 2700004
Availability:: Ships from Manufacturer
Shipping:: Free Over $98 In U.S. 48
Type:: Fuel Line Hose
Series:: Race-Rite
Finish:: Black
Size:: -4 AN
Length:: Bulk (Select by quantity)
Fitting Style:: Crimp-On
Max Pressure (PSI):: 900
Notes:: Select the number of feet that you want by the quantity. Ex. Quantity 10 = 10 continuous feet

$27.99

Current Stock:

Quantity:

Description
Videos

Description

Fragola -4 AN Race-Rite Hose P.T.F.E. Core

Description

FRAGOLA’s PREMIER HOSE: Our Race-Rite & Race-Rite Pro Hose features an enlarged inner diameter with a smoothbore conductive P.T.F.E. core that utilizes a convoluted exterior and black Aramid braid cover. Making it compatible with all fluids, capable of tight bend radiuses, and higher flow rates.

RACE-RITE HOSE – FUEL, ATF, & COOLANT HOSE

Smoothbore conductive P.T.F.E. core is resistant to fuel permeation.
Convoluted Exterior allows for tighter bend radius.
60% lighter than our 8400 Series Black Nylon Race Hose.
Features a true to size I.D. for improved flow rate.
Works with all fluids, including Ethanol type fuels, ATF, Coolant, & Oils.
Use with our Race-Rite Crimp-on Hose Ends.
Operating range -65° -500°F

Technical Specifications

Part	A-N Size	Working Pressure	Vacuum Rating	Min. Bend Radius	Weight Per Ft.
2700004	-4	900 psi.	28 in. hg.	1.5″	0.04 lbs
2700006	-6	800 psi.	28 in. hg.	2″	0.07 lbs
2700008	-8	600 psi.	28 in. hg.	3″	0.09 lbs
2700010	-10	500 psi.	28 in. hg.	4″	0.14 lbs
2700012	-12	420 psi.	28 in. hg.	5″	0.16 lbs
2700016	-16	400 psi.	28 in. hg.	6″	0.24 lbs
