Fragola AN Hose End Caps

Name: Fragola AN Hose End Caps
Brand: FRAGOLA
SKU: 11580
Price: 5.99 USD
Availability: InStock

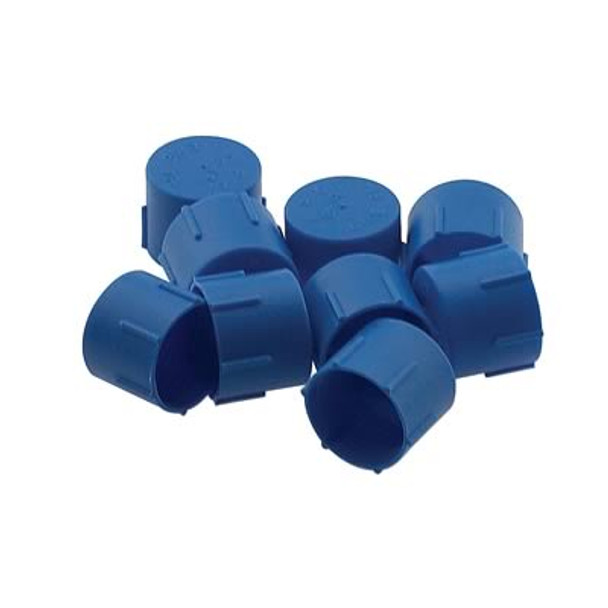

Use these plastic caps to protect the AN threads when the hose ends are removed.

Available in Blue

Sizes -3 AN to -16 AN

Sold in Packs of 10

Description	Part Number
-3, 3/8-24 Thread	900800
-4, 7/16-20 Thread	900802
-6, 9/16-18 Thread	900804
-8, 3/4-16 Thread	900806
-10, 7/8-14 Thread	900808
-12, 1 1/16-12 Thread	900810
-16, 1 5/16-12 Thread	900812

A-N Threads

Use the profiles below to determine the correct A-N thread before ordering. The corresponding chart displays the outer diameter of the metal tube and thread size.

A-N Size	Metal Tube O.D.	Thread Size
3	3/16″	3/8-24 UNJF
4	1/4″	7/16-20 UNJF
6	3/8″	9/16-18 UNJF
8	1/2″	3/4-16 UNJF
10	5/8″	7/8-14 UNJF
12	3/4″	1 1/16-12 UNJF
16	1″	1 5/16-12 UNJF
20	1 1/4″	1 5/8-12 UNJF

Torque Specifications

Many people over tighten the aluminum fitting on the adapter, which distorts the 37 degree seat, and may cause leakage. Both the threads and the seat surface should have a drop or two of oil to smooth the tightening process. The maximum torque specifications are listed here. (An alternate method of tightening is to bring the nut to “hand-tight” and then rotate it another turn with the proper wrench.)

Fitting Size	Max. Torque in Foot Pounds
3	8.75
4	11.5
6	16.25
8	29
10	35
12	45
16	70
20	85

Size Chart

A-N Thread			Pipe Thread		B-Nut Hex
A-N Size	Tube Diameter	Thread Size (S.A.E.)	Pipe Thread	Threads Per Inch	A-N Size	Hex Diameter
-2	1/8″	5/16-24	1/16″	27
-3	3/16″	3/8-24	1/8″	27	#3	1/2″
-4	1/4″	7/16-20	1/4″	18	#4	9/16″
-6	3/8″	9/16-18	3/8″	18	#6	11/16″
-8	1/2″	3/4-16	1/2″	14	#8	7/8″
-10	5/8″	7/8-14	3/4″	14	#10	1″
-12	3/4″	1 1/16-12	1″	11	#12	1 1/4″
-16	1″	1 5/16-12			#16	1 1/2″
-20	1 1/4″	1 5/8-12			#20	1 7/8″
-24	1 1/2″	1 7/8-12
-28	1 3/4″	2 1/4-12
-32	2″	2 1/2-12
