HOLLEY

Holley GM Gen V LT Swap Oil Pan Natural

PART NUMBER:
302-21
UPC:
90127139318
MPN:
302-21
Availability:
Ships from Manufacturer
Shipping:
Free Over $98 In U.S. 48
Type:
LT Swap Oil Pans
Engine:
GM Gen V LT
MATERIAL:
Aluminum
FINISH:
Natural
OIL CAPACITY W/ FILTER (Qts.):
6.1
MAX STROKE:
4.000
WINDAGE TRAY INCLUDED:
Yes
OIL PAN BOLTS INCLUDED:
Yes
OIL FILTER INCLUDED:
No
QUANTITY:
Sold as a Kit
Notes:
This oil pan is not for use on engines that originally used a dry sump oiling system
On Sale
  • Holley GM Gen V LT Swap Oil Pan Natural (302-21)
  • Holley GM Gen V LT Swap Oil Pan Natural (302-21)
  • Holley GM Gen V LT Swap Oil Pan Natural (302-21)
Now: $387.95
Was: $430.95

Description

Holley GM Gen V LT Swap Oil Pan Natural

GM Gen V LT Swap Oil Pan - as Cast

GM's new Gen-V LT direct injected engines are starting to find their way into a large variety of vehicles. They make great power, plus they're very durable and reliable. Unfortunately, the factory oil pans don't always fit or they hang too low for today's hot rods. Holley's LT Swap Engine Oil Pan is designed to help! It provides maximum clearance to the chassis and ground, plus provides an OE (Original Equipment) style fitment for durability and proper sealing. These oil pans are perfect for: 1967-1992 Camaro/Firebird, 1968-1974 Nova/Apollo/Ventura/Omega, 1978-1987 G-body, 1964-1972 A-body, and 1973-1987 Chevy/GMC Full Size Trucks.

Features:

  • Designed for LT engine swap installations in classic car and truck chassis requiring more oil pan to chassis clearance around the front half of the oil pan
  • Allows for up to 4.00-inch crankshaft stroke
  • Can be used anywhere a GM F-body oil pan can be used
  • Provides OE style fitment – OE oil filter mounting, OE oil cooler port provision, OE engine NVH suppression, OE flange gasket and sealing, proper structural rigidity and OE bell-housing attachments
  • Traditional high-quality cast aluminum appearance with clean exterior styling
  • Provides maximum clearance for vehicles where the steering linkage is behind the engine crossmember
  • Traditional high-quality cast aluminum appearance with clean exterior styling.
  • Provides maximum clearance for vehicles where the steering linkage is behind the engine crossmember.
  • Cast and machined aluminum
  • Cast boss on pan can be tapped for oil or PVC return - if needed (part number 302-20 comes with this machined port)
  • Optional Hinge Door Baffle - Available Separately

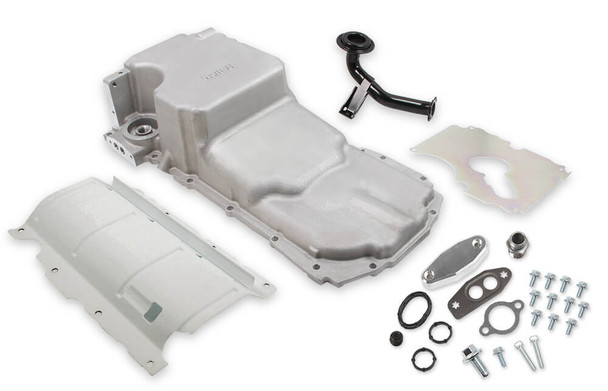

  • Complete kit includes: windage tray, sump baffle, OE style pick-up tube, oil filter stud, billet oil passage cover, etc.

If a turbo oil return is needed, oil pan part number 320-20 is recommended instead of this pan (since it has the oil return port machined). Maximum Recommended Crankshaft Stroke 4.00". This oil pan is not for use on engines that originally used a dry sump oiling system. Recommended LT Dipstick & Dipstick Tube - GM part #s 12661062 (dipstick) and 12678823 (dipstick tube) Some factory LT1 applications include an oil temperature sensor. Currently this pan does not have a boss to install that temperature sensor. If the sensor is desired, it will have to be relocated and machining would be required.*

PARTS NEEDED:

  • High Quality Gray RTV sealer (GM P/N 12378521 or equivalent)
  • Thread sealant (Loctite® brand 567 pipe thread sealant or equivalent)
  • Thread locking compound (blue Loctite® or equivalent)
  • Oil Filter (AC Delco® PF64 or equivalent)
  • Oil
