Icon Forged Pistons

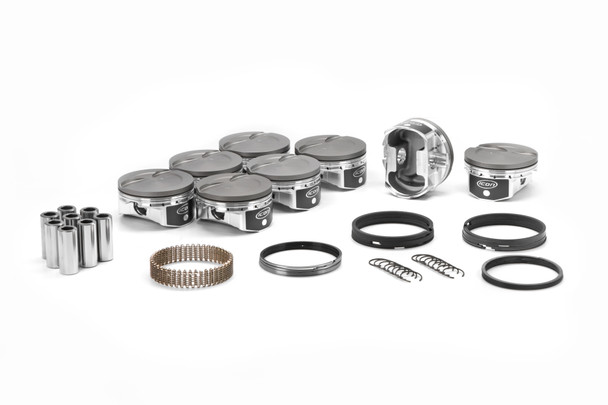

Icon Elite GM LS 4.010 Bore 4.000 Stroke -20cc Dish Forged Piston Kit IC532CAKTS.010
- PART NUMBER:
- IC532CAKTS.010
- MPN:
- IC532CAKTS.010
- Availability:
- Ships from Manufacturer
- Shipping:
- Free Over $98 In U.S. 48
- Type:
- Dish Pistons
- Bore (in.):
- 4.010
- Stroke (in.):
- 4.000
- Rod Length (in.):
- 6.125
- Compression Height (in.):
- 1.115
- Compression Ratio w/64.5cc:
- 9.7:1
- Pin Diameter (in.):
- 0.927
- Crown Volume (cc):
- -20
- Material:
- 2618
- Rings Included:
- Yes
- Ring Sizes:
- 1.2mm, 1.2mm, 3.0mm
- UEM Ring #:
- 4000ES8.015
- Quantity:
- Sold as set of 8
Description
Icon Elite GM LS 4.010 Bore 4.000 Stroke -20cc Dish Forged Piston Kit IC532CAKTS.010
Icon Elite Pistons are fully machined from 2618 Alloy for higher horsepower naturally aspirated and power adder applications. Features include anondized crown and top land, UltraWear M42 skirt coating and 4130 series wrist pins. Piston and ring kits include performance steel moly top and ductile iron napier second with a 3.0mm
Features:
- 2618 Alloy
- .030" Offset wrist pins
- Anodized top ring groove
- M42 Skirt Coating
- 15 Degree Valve Angle
- 9.240" Deck
- Round Wire Locks
