Icon Forged Pistons

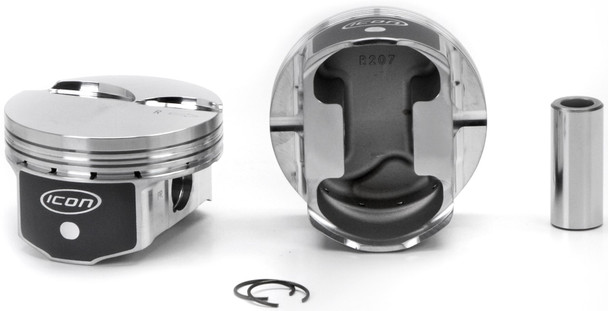

Icon Premium GM LS 3.913 Bore 3.622 Stroke -3cc Flat Top Forged Piston Kit IC549CKTS.015
- PART NUMBER:
- IC549CKTS.015
- MPN:
- IC549CKTS.015
- Availability:
- Ships from Manufacturer
- Shipping:
- Free Over $98 In U.S. 48
- Type:
- Flat Top Pistons
- Bore (in.):
- 3.913
- Stroke (in.):
- 3.622
- Rod Length (in.):
- 6.125
- Compression Height (in.):
- 1.304
- Compression Ratio w/64.5cc:
- 10.2:1
- Pin Diameter (in.):
- 0.927
- Crown Volume (cc):
- -3
- Material:
- 4032
- Rings Included:
- Yes
- Ring Sizes:
- 1.2mm, 1.2mm, 3.0mm
- UEM Ring #:
- 3898ES8.015
- Quantity:
- Sold as set of 8
Description
Icon Premium GM LS 3.913 Bore 3.622 Stroke -3cc Flat Top Forged Piston Kit IC549CKTS.015
Icon Premium Piston are fully machined from 4032 Alloy for street/strip and mild power adders. Piston and ring kits are supplied with new performance steel moly top and ductile iron napier second with a 3.0mm oil.
Features:
- 4032 Alloy
- Offset wrist pins
- Round Wire Locks
- M42 Skirt Coating Standard
- 15 Degree Valve Angle
- 9.240" Deck
