JE Pistons

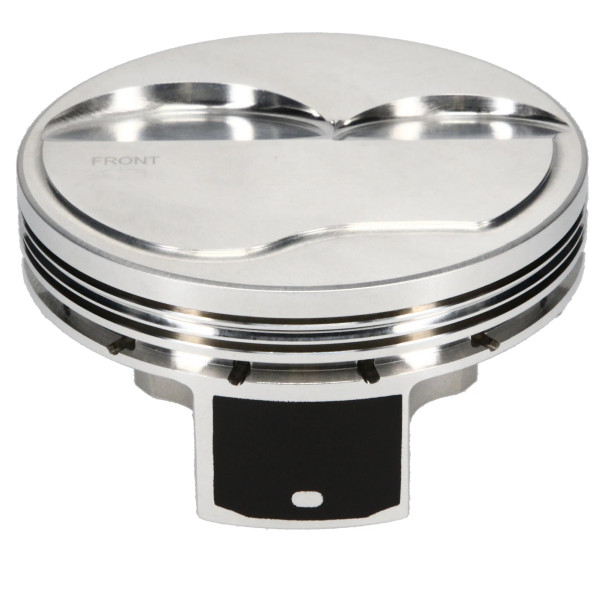

JE Pistons 4.010 Bore 3.900 Stroke 9.2cc Dome Piston Set 324011

PART NUMBER:
324011
MPN:
324011
Availability:
Ships from Manufacturer
Shipping:
Free Over $98 In U.S. 48
Type:
Dome Pistons
Bore (in.):
4.010
Stroke (in.):
3.900
Rod Length (in.):
6.125
Compression Height (in.):
1.165
Compression Ratio w/68cc:
12.5:1
Pin Diameter (in.):
0.927
Crown Volume (cc):
9.2
Material:
2618
Ring Included:
No
Ring Sizes:
1.2mm, 1.5mm, 3.0mm
Recommended Ring Set:
JG3108-4010-4
Notes:
For use with 15 Degree Heads only
Notes:
Pin fitting, round wire locks included
Notes:
For applications over 800hp, a thicker wall wrist pin is recommended.
Quantity:
Sold as set of 8
On Sale
  • JE Pistons 4.010 Bore 3.900 Stroke 9.2cc Dome Piston Set 324011
  • JE Pistons 4.010 Bore 3.900 Stroke 9.2cc Dome Piston Set 324011
  • JE Pistons 4.010 Bore 3.900 Stroke 9.2cc Dome Piston Set 324011
  • JE Pistons 4.010 Bore 3.900 Stroke 9.2cc Dome Piston Set 324011
  • JE Pistons 4.010 Bore 3.900 Stroke 9.2cc Dome Piston Set 324011
Now: $807.49
Was: $949.99

Description

JE Pistons 4.010 Bore 3.900 Stroke 9.2cc Dome Piston Set 324011

JE Pistons asymmetrical FSR (Forged Side Relief) piston line incorporates modern forging design with a larger skirt on the major thrust side and smaller, friction-reducing skirt on the minor thrust side. Combined with precision CNC machining, the result is a high-strength, lightweight piston that is extremely durable.

Features:

  • Accumulator Grooves
  • Double Pin Oilers
  • Offset Wrist Pin

Includes:

  • Pin #945-2250-15-51C (105g) For use with 6.098 Rod Length
  • Pin #927-2250-15-51C (106g) For use with 6.125 Rod Length
  • Round Wire Locks # 927-073-MW
