JE Pistons LS 4.125 Bore 3.900 Stroke -5.0cc Flat Top Piston Set 323986
- PART NUMBER:
- 323986
- MPN:
- 323986
- Availability:
- Ships from Manufacturer
- Shipping:
- Free Over $98 In U.S. 48
- Type:
- Flat Top Pistons
- Bore (in.):
- 4.125
- Stroke (in.):
- 3.900
- Rod Length (in.):
- 6.125
- Compression Height (in.):
- 1.165
- Compression Ratio w/68cc:
- 11.1:1
- Pin Diameter (in.):
- 0.927
- Crown Volume (cc):
- -5.0
- Piston Material:
- 2618
- Ring Included:
- No
- Ring Sizes:
- 1.2mm, 1.5mm, 3.0mm
- Recommended Ring Set:
- JG31F8-4125-2
- Notes:
- Compatible with all LS Heads
- Notes:
- Pin fitting, round wire locks included
- Quantity:
- Sold as set of 8
On Sale
Description

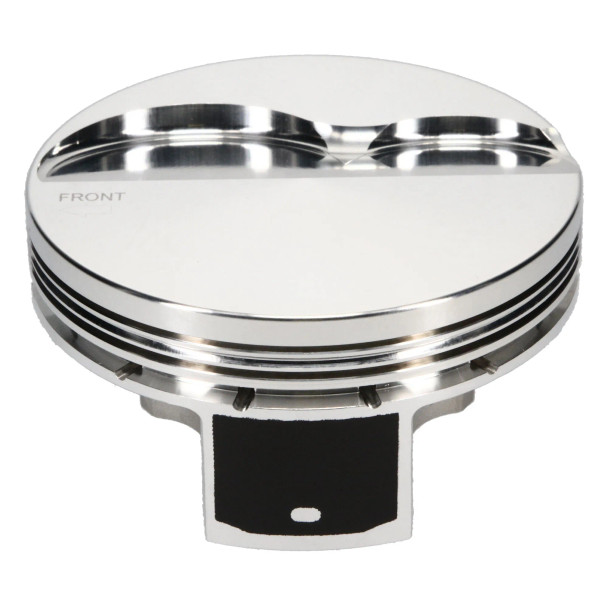

JE Pistons LS 4.125 Bore 3.900 Stroke -5.0cc Flat Top Piston Set 323986
JE Pistons asymmetrical FSR (Forged Side Relief) piston line incorporates modern forging design with a larger skirt on the major thrust side and smaller, friction-reducing skirt on the minor thrust side. Combined with precision CNC machining, the result is a high-strength, lightweight piston that is extremely durable.
Features:
- Accumulator Grooves
- Double Pin Oilers
- Offset Wrist Pin
Includes:
- Pin #945-2250-15-51C (105g) For use with 6.098 Rod Length
- Pin #927-2250-15-51C (106g) For use with 6.125 Rod Length
- Round Wire Locks # 927-073-MW
