Katech GM LS High Capacity Ported Oil Pump KAT-A5069-LS9

PART NUMBER:: KAT-A5069-LS9
UPC:
MPN:: KAT-A5069-LS9
Availability:: Ships from Manufacturer
Shipping:: Free Over $98 In U.S. 48
Type:: High Volume Oil Pumps
Oil Pump Volume:: High
Oil Pump Style:: Dry Sump
Notes:: Fits LS7/LS9 and LS3 (Dry Sump)

$967.99

Current Stock:

Quantity:

Description

Description

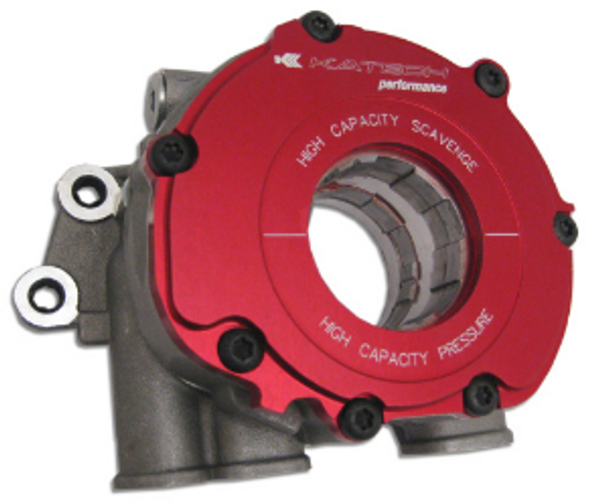

Katech GM LS High Capacity Ported Oil Pump KAT-A5069-LS9

Features:

Direct replacement oil pump for LS7 and LS9 engines (also fits dry sump LS3s)
30% greater scavenge capacity
20% greater pressure capacity
CNC ported
Blueprinted to precise tolerances, documented and serialized
Red anodized finished with laser-etched Katech
Performance logo
Pre-lubed
2006-2008 LS7 requires a change to the 2009 crank sprocket (12622539) when using the Katech red pump. Failure to change the crank sprocket will result in oil pump binding and will not be covered under warranty

Note: pictures may not represent actual part

This pump is designed for engines with higher oil flow demands such as looser bearing clearances, aftermarket lifters, piston squirters or oil-fed turbos/superchargers. Otherwise, the blue pump is recommended.
