LSXCELERATION

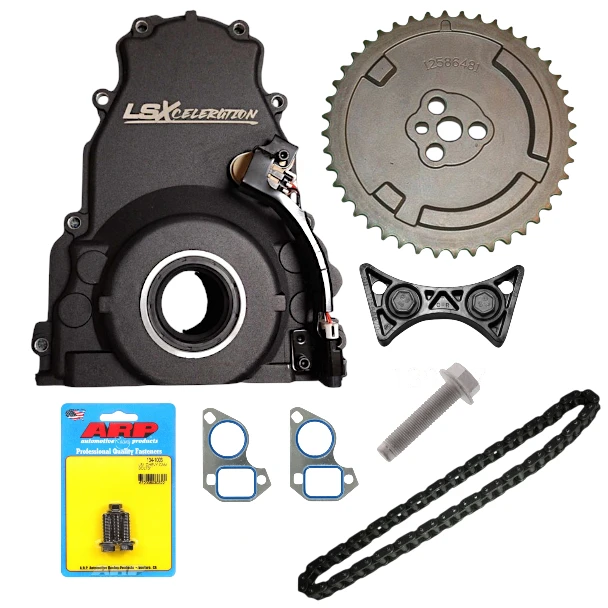

LSXceleration GM Gen IV LS VVT-Delete Kit

PART NUMBER:
GENIVLS-VVT-DELETE
MPN:
GENIVLS-VVT-DELETE
Shipping:
Free Over $98 In U.S. 48
Type:
VVT-Delete Kit
Timing Cover:
Optional
Cam Sprocket:
Optional
Cam Bolt:
Optional
LS2 Chain Damper:
Optional
Water Pump Gaskets:
Optional
Timing Chain:
Optional
Crank Bolt:
Optional
  • LSXceleration GM Gen IV LS VVT-Delete Kit
  • 54-3906 LSXceleration GM Gen IV LS VVT-Delete Kit
  • 54-3907 LSXceleration GM Gen IV LS VVT-Delete Kit
  • 12633906 LSXceleration GM Gen IV LS VVT-Delete Kit
  • 131 LSXceleration GM Gen IV LS VVT-Delete Kit
  • 16-0223-2 LSXceleration GM Gen IV LS VVT-Delete Kit
  • 139617 LSXceleration GM Gen IV LS VVT-Delete Kit
  • 11561283 LSXceleration GM Gen IV LS VVT-Delete Kit
  • 234-2503 LSXceleration GM Gen IV LS VVT-Delete Kit
  • 134-1003 LSXceleration GM Gen IV LS VVT-Delete Kit
  • 13-91689 LSXceleration GM Gen IV LS VVT-Delete Kit
  • 13916 LSXceleration GM Gen IV LS VVT-Delete Kit
$214.42
  • LSXceleration LS2/LS3 Black Timing Cover Kit 54-3906
  • LSXceleration LS2/LS3 Polished Timing Cover Kit 54-3907
  • Chevrolet Performance GM LS Gen IV Timing Cover 12633906
  • LSXceleration 3-Bolt 4-Pole Cam Sprocket (12586481)
  • LSXceleration 1-Bolt 4-Pole Cam Sprocket
  • 134-1003 ARP
  • Chevrolet Performance LS Single Cam Bolt 11561283
  • LS2 Style Timing Chain Damper 139617
  • LSXceleration Water Pump Gaskets 16-0223-2
  • GM LS Single Roller Timing Chain Only LS1 LS2 LS3
  • LSXceleration LS Harmonic Balancer Bolt 22-57840
  • ARP GM LS Harmonic Balancer Bolt Kit 234-2503

Description

LSXceleration GM Gen IV LS VVT-Delete Kit

VVT-Delete Kit Parts Available:

  • Timing Cover
  • Cam Sprocket
  • Cam Bolt
  • Chain Damper
  • Water Pump Gaskets
  • Timing Chain
  • Crank Bolt

Cam Bolt Option: 134-1003 Premium grade 8740 alloy chromemoly steel is used to produce these ARP High Performance Cam Bolts. The material is heat-treated to provide a tensile strength in the 180,000 PSI range which is substantially stronger than stock. For GM LS 3-Bolt Cam Applications.

Cam Bolt Option: 11561283 Steel, Hex, 16mmx1.5, Fits single bolt cam applications. Non VVT only.

Cam Sprocket Option: 13916 For 3 bolt cam, 58x crankshaft applications.

Cam Sprocket Option: 13-91689 For 1 bolt cam, 58x crankshaft applications.

Chain Damper Option: 139617

Timing Cover Option: 54-3906 1-Piece Timing Cover with Cam Sensor Provision, Timing cover Gasket, Front seal installed. / Black Finish

Timing Cover Option: 54-3907 1-Piece Timing Cover with Cam Sensor Provision, Timing cover Gasket, Front seal installed. / Polished Finish

Timing Cover Option 12633906 Kit Includes:

  • Timing Cover 12600326
  • Timing Cover to Block Gasket 12633904
  • Cam Sensor Wiring Harness 12627501
  • Cam Sensor to Cover Bolt 11588712
  • Cam Sensor with Seal 12591720
  • Crank Shaft Seal 12585673
  • Cover to Block Bolts 11515758
  • Wet Sump Applications Only
  • Cam sensor will work for LS2 1x Cam Gear and the LS3 4x Cam Gear

Timing Chain Option: 131 Single Row / Steel

Water Pump Gaskets Option: 16-0223-2 / Aluminum / Sold as a Pair

Crank Bolt Option: 22-57840 / (Like GM #12557840) / Hex / Natural Finish

Crank Bolt Option: 134-1003 / Hex / Black Finish

***See Individual part numbers on website for full details***
