MANLEY

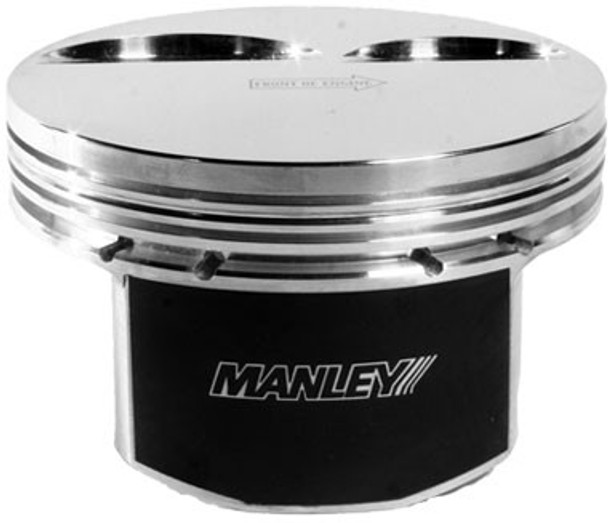

Manley Platinum Series LS 3.800 Bore 3.622 Stroke -2cc Flat Top Piston Kit 561020C-8
- PART NUMBER:
- 561020C-8
- UPC:
- 8.07298E+11
- MPN:
- 561020C-8
- Availability:
- Ships from Manufacturer
- Shipping:
- Free Over $98 In U.S. 48
- Type:
- Flat Top Pistons
- Bore (in.):
- 3.800
- Stroke (in.):
- 3.622
- Rod Length (in.):
- 6.125
- Compression Height (in.):
- 1.304
- Pin Diameter (in.):
- 0.927
- Crown Volume (cc):
- -2
- Weight (g):
- 454
- Compression Ratio w/58cc:
- 10.60:1
- Alloy:
- 2618
- Ring Included:
- No
- Ring Sizes:
- 1.2mm, 1.2mm, 3.0mm
- Recommended Ring Set:
- 46520-8 or 46520ST-8
- Quantity:
- Sold as set of 8
- Notes:
- Rings not Included
Description
Manley Platinum Series LS 3.800 Bore 3.622 Stroke -2cc Flat Top Piston Kit 561020C-8
Features:
- 2618 high strength material lightweight design
- Offset wrist pin design
- Machined for reluctor wheel clearance
- Round wire locks
- 1.2, 1.2, 3.0mm ring package
- Forced pin oiling, pressure balance groove and precision pin fitting
- Premium Chrome Moly wrist pins (Standard Series) included
- 9310 alloy .210” wall pin (Extreme Duty Series) included P/N 42542
