MANLEY

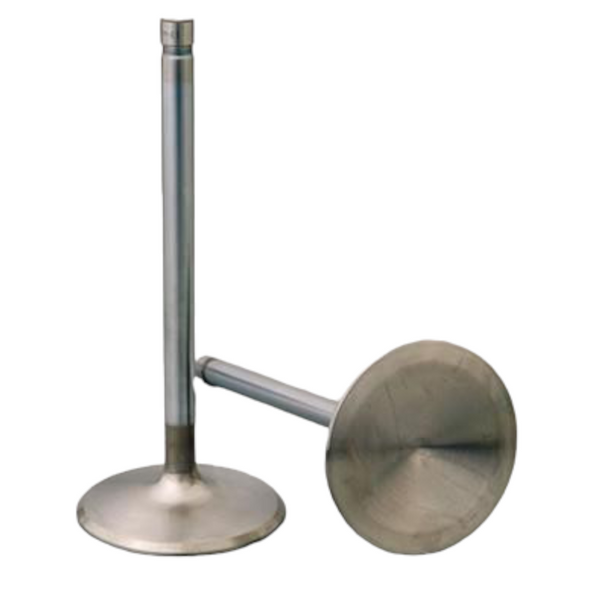

Manley Titanium 8mm x 2.205 LS7 Intake Valves
- PART NUMBER:
- 11958TB-8
- MPN:
- 11958TB-8
- Availability:
- Ships from Manufacturer
- Shipping:
- Free Over $98 In U.S. 48
- Type:
- 2.205 Intake Valves
- Weight (grams):
- 78
- Head Diameter (in):
- 2.205
- Stem Diameter (in.):
- 0.3135
- Valve Material:
- Titanium
- Installed Height (in.):
- Stock
- Overall Length (in.):
- 5.205
- Tip Length (in.):
- 0.290
- Valve Seat Width (in.):
- 0.080
- Underhead Angle:
- 12 Degree
- Notes:
- These valves have inserted hard tips
- Notes:
- Valves have a 5° dish
Description
Manley Titanium 8mm x 2.205 LS7 Intake Valves
- These valves have an inserted hard tip except P/N 11958BC-8
- These valves have an O.E. style single radius keeper groove.
- “C” suffix indicates CrN seat coating
Use Manley valve lock P/N 13098-16 (7°) or 13153-16 (10°) depending on your spring/retainer choice
Warranty Information
Due to the intended usage of the products sold by Manley Performance Products, Inc., they are sold WITHOUT WARRANTY OR ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR THE INTENDED PURPOSE.
