Mast Motorsports

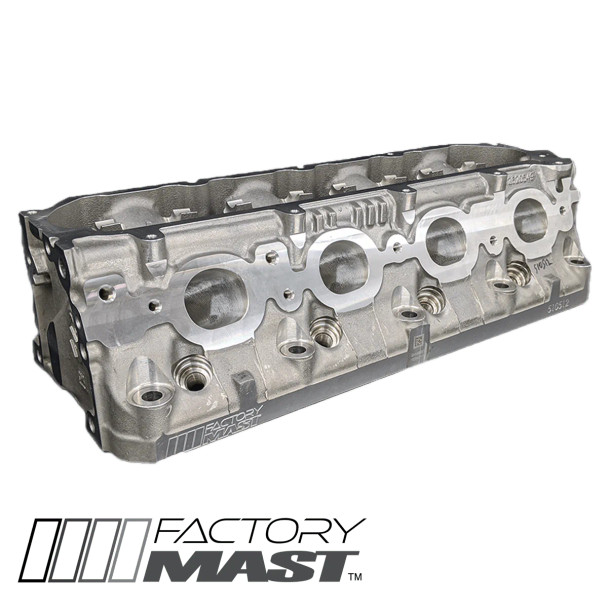

Mast Factory Gen V LT 301cc/60cc 4.065 CNC Port Cylinder Heads w/ Aftermarket Valves - Direct Injection - CH-LTX-310514

PART NUMBER:

CH-LTX-310514

UPC:

MPN:

CH-LTX-310514

Availability:

Ships from Manufacturer

Shipping:

Free Over $98 In U.S. 48

Type:

Gen V LT Cylinder Heads

Material:

319-T7 Aluminum

CNC Machined Intake Runner:

Yes

CNC Machined Exhaust Runner:

Yes

CNC Machined Combustion Chamber:

Yes

Minimum Bore Size (in.):

4.065

Bolts Per Cylinder:

4

Assembled:

No

Intake Valve Angle (°):

12.5 x 2.61

Exhaust Valve Angle (°):

12 x 2.38

Intake Runner Volume (cc):

301

Exhaust Runner Volume (cc):

112

Chamber Volume (cc):

60

Intake Valve (in.):

2.165

Intake Material:

N/A

Exhaust Valve (in.):

1.590

Exhaust Material:

N/A

Valve Guides Included:

Yes

Valve Guides Material:

Powdered Metal

Intake Seat Material:

Ductile Iron

Exhaust Seat Material:

OE

Valve Job Type:

Newen CNC 5 Angle

Rocker Stands Included:

Yes

Valve Springs Included:

No

Valve Spring Type:

N/A

Valve Spring Max Lift (in.):

N/A

Closed Spring Pressure:

N/A

Open Spring Pressure:

N/A

Retainers Included:

No

Spring Retainer Material:

N/A

Quantity:

Sold as a Pair
