PROCHARGER

ProCharger Serpentine LS Accessory Drive Kit w/ Intercooled P-1X Supercharger 1LS400-P1X-I

PART NUMBER:: 1LS400-P1X-I
UPC:
MPN:: 1LS400-P1X
Availability:: Ships from Manufacturer
Shipping:: Free Over $98 In U.S. 48
Type:: LS Accessory Drive Kits
Head Unit Type:: P-1X
Crank Pulley Included:: Yes
Alternator Bracket/Pulley/Belt Included:: Yes
A/C Bracket/Pulley/Belt Included:: Yes
Water Pump Included:: Yes
Power Steering Bracket Included:: Yes
Supercharger Bracket Included:: Yes
Tensioner Included:: Yes
8 Rib Balancer Belt Included:: Yes
Intercooler:: Yes
Quantity:: Sold as a kit

$7,049.00

Select Head Unit Finish: Required

Select Alternator Bracket/Tensioner Finish: Required

Select Air Conditioning Bracket Finish: Required

Select Power Steering Bracket Finish: Required

Select Supercharger Bracket/Tensioner Finish: Required

Omit Power Steering Belt, Bracket & Pulley: Required

Omit Air Conditioning Bracket & Pulley : Required

Omit Water Pump: Required

Select ATI Balancer: Required

Select Helical Gearset: Required

Select Crank Pin Kit: Required

Select 10-Rib supercharger Drive Belt: Required

Select Carb Bonnet Finish: Required

Select Carb Bonnet Profile: Required

Select Supercharger Oil Pack: Required

Select Oil Drain Line Kit: Required

Select Oil Removal Syringe: Required

Current Stock:

Quantity:

Description
Warranty Information

Description

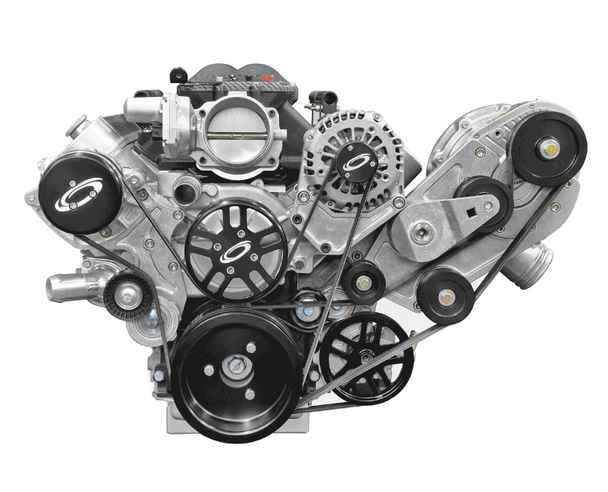

ProCharger Serpentine LS Accessory Drive Kit w/ Intercooled P-1X Supercharger 1LS400-P1X-I

The base kit includes:

– Water pump
– Water pump bracket, pulley, and belt
– Crank Pulley and belt
-Alternator bracket, pulley, and belt
-A/C Bracket, Pulley, Belt
-Power Steering Bracket, Pulley, and Belt
-Supercharger bracket, tensioner, and Belt
- Intercooled P-1X (2 core 550 hp)

Balancer required:

– 8 Rib – ATI #917345
– 10 Rib – ATI # 917347X

ACCESSORIES NEEDED:

Sanden SD-7B10 A/C compressor 6-rib drive
2007-2013 GM Truck Alternator, GM p/n 20881337 (or equivalent)
GM Type 2 Power Steering pump Tuff Stuff 6175AL (or equivalent) reservoir p/n 6175ARES, remote reservoir required for supercharged applications
Water pump supplied

ADDITIONAL NOTES:

Pinning crank pulley is recommended
Accessory Pulleys included
Can be ordered without A/C
Can be ordered without power steering
Not available for LS7
Not tall deck compatible
Not compatible with VVT

*Please call if you are interested in any of the following options:*

Add Black Finish to Water Pump

Add Satin/Black/Chrome Alternator

Add Satin/Black/Chrome Power Steering Pump

Add Satin/Black/Chrome Air Conditioning Compressor

View AllClose

Warranty Information

*12-month warranty on new, serpentine head unit purchases. Warranty does not cover owner misuse or neglect. *36-month head unit warranty option is available on new, complete systems with P-series head units. *Limited warranty on cog drive, gear drive or race head unit purchases. Limited means free of manufacturing defects upon receipt. *90-day limited warranty on serpentine head unit upgrades *30-day limited warranty on serpentine head unit rebuilds/repairs. *Exceeding the published supercharger RPM, failure to follow service procedures, or using improper supercharger orientation will void the warranty. The ProCharger warranty applies to original purchaser only and is non-transferrable. *Failure to use ProCharger specified oil in head units, and drives, will void ProCharger manufacturer warranty. *90-day limited warranty on components purchased separately (excludes electrical and fuel components). *30-day limited warranty on electrical components and fuel components. *3-year limited warranty on new air-to air intercoolers. *1-year limited warranty on new air-to-water intercoolers. *Wastegates, methanol injection kits, aftermarket intakes, etc may cause damage to ProCharger supercharger , intercooler, or intake that will not be covered under warranty.
