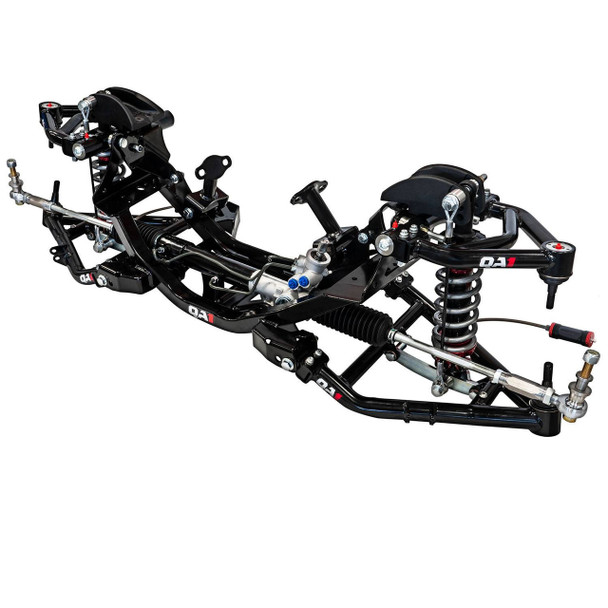

QA1 Front Coilover Crossmember System Single Adjustable 650LB/IN. Springs 1963-72 C10 Truck 52622-S650

Part Number:
52622-S650
MPN:
52622-S650
Availability:
Ships from Manufacturer ( 6-8 Week Lead Time )
Shipping:
Free Over $98 In U.S. 48
Type:
Front Suspension Systems
Application:
1963-1972 Chevy C10
Shock Valving:
Single Adjustable
Spring Rate:
650lb/in.
Quantity:
Sold as a System
Notes:
Will require you to trim inner fenders. Steering shaft is not included. Requires use of 1973-1987 C10 spindles
  • QA1 Front Coilover Crossmember System Single Adjustable 650LB/IN. Springs 1963-72 C10 Truck 52622-S650
  • QA1 Front Coilover Crossmember System Single Adjustable 650LB/IN. Springs 1963-72 C10 Truck 52622-S650
  • QA1 Front Coilover Crossmember System Single Adjustable 650LB/IN. Springs 1963-72 C10 Truck 52622-S650
  • QA1 Front Coilover Crossmember System Single Adjustable 650LB/IN. Springs 1963-72 C10 Truck 52622-S650
$4,238.95

Description

QA1 Front Coilover Crossmember System Single Adjustable 650LB/IN. Springs 1963-72 C10 Truck 52622-S650

FEATURES & BENEFITS

  • Modern Steering: Switch to rack-and-pinion steering for quicker, tighter control, perfect for handling bigger wheels and better drivability.
  • Adjustable Ride Height: Dial in the perfect stance with up to 8” of drop, all while keeping a smooth ride and performance.
  • Lightweight Design: Drop 140 lbs. from your truck compared to stock parts, giving you a more responsive and agile driving experience.
  • Easy Bolt-On Install: The crossmember comes ready to go—just bolt it in, no cutting or welding needed, for a hassle-free upgrade.
  • Made in the USA: Proudly built in the USA, giving you top-notch quality and reliability for your truck.

FITMENT NOTES

  • If you already have QA1’s coil-over system, check out the retrofit kits to use your existing components
  • Total drop range depends on wheel/tire fitment
  • Will require you to trim inner fenders
  • Engine mounts are year-range specific to maintain OE bellhousing location
  • Optimized bump steer settings require at least 18” wheels
  • 18” wheels can run up to 6” of backspacing
  • 20” wheels can run up to 7” of backspacing
  • Requires use of 1973-1987 C10 spindles
  • May require different headers and oil pan (Stock SBC & BBC pans fit)
  • Steering shaft is not included
  • May require new power steering hoses depending on fittings, pump and engine placement

RACK & PINION STEERING

Powered rack and pinion steering offers quicker steering and a tighter feel. Plus, increase steering angle when fitting larger wheels and tires, and improve geometry for enhanced drivability.

INCREASED GROUND CLEARANCE

The factory crossmember and control arms on a C10 sit quite low to the ground. QA1's design raises these components, making the undercab frame rails the truck’s lowest point. To ensure ample shock travel at this lower height, QA1 designed new upper shock mounts that increase travel, delivering a great ride and performance, even at low heights.

DIAL IN COMFORT & PERFORMANCE

QA1 single adjustable coilovers deliver exceptional ride quality and performance for your Truck. With the simple turn of a dial, you can effortlessly switch between a comfortable cruise and a more aggressive feel, making them ideal for daily driving or twisty backroads. Accessing the 18-position knob is easy, and by turning the steering wheel to full lock, you can reach in and make your tuning adjustments at the base of the shock.

EASY, BOLT-IN INSTALLATION

The crossmember comes powder coated and ready to install. No need to cut or weld your frame. It easily locates the steering rack, and you can choose mounts (sold separately) for common engines.

MODULAR ENGINE MOUNTS

Choose from modular engine mounts (sold separately) that allow you to reuse your existing transmission mount and driveshaft. Kits are available for small block Chevy, big block chevy and LS applications. DIY mounts are also available if you want to customize the location of your engine.
