SCE Gaskets

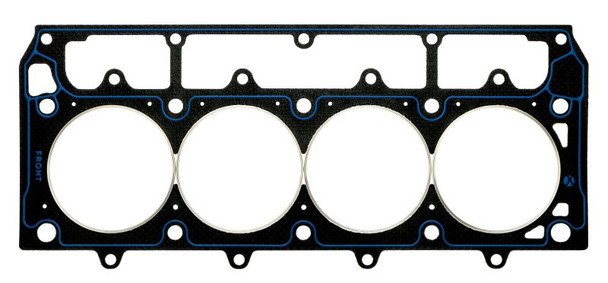

SCE LSX 4.174 Bore Vulcan Cut-Ring Head Gasket CR191759L
- PART NUMBER:
- CR191759L
- UPC:
- 679002233442
- MPN:
- CR191759L
- Shipping:
- Free Over $98 In U.S. 48
- Type:
- LSX Head Gaskets
- Gasket Material:
- Composite
- Cut-Ring Material:
- Stainless Steel
- Bore (in.):
- 4.174
- Compressed Thickness (in.):
- .059
- Quantity:
- Sold individually
- Note:
- For 6 bolt head applications. Left side gasket.
Description
SCE LSX 4.174 Bore Vulcan Cut-Ring Head Gasket CR191759L
LSX 4.174" Gasket Bore x 0.059" Compressed Thickness. Sold individually.
A hybrid design forged to harness the best sealing properties of two head gasket types.
- COMPOSITE - Pliable, perforated metal-core composite gasket body eliminates coolant and oil leaks. No sealant needed!
- STAINLESS STEEL - Solid stainless cut-ring ‘bites’ into the cylinder head forming a positive barrier against combustion pressure leaks. No machining required!
- Designed for use with high static compression or forced-induction engines which are prone to combustion pressure leaks when using typical composite or MLS head gaskets.
Engine Sealing Capability Exceeds:
- 16:1 Static Compression Ratio 35 lbs.
- Supercharged or Turbocharged forced induction
- 250 Shot of Nitrous Oxide
