Schumann
Schumann High Volume Sportsman LS Oil Pump LS-SSR-XV
- PART NUMBER:
- LS-SSR-XV
- MPN:
- LS-SSR-XV
- Shipping:
- Free Over $98 In U.S. 48
- Type:
- High Volume Oil Pumps
- Oil Pump Volume:
- High
- Oil Pump Pressure:
- 75-85 Hot
- Oil Pump Style:
- Wet Sump
- Mounting Seal Included:
- Yes
- Screen Seal Included:
- Yes
- Screen Included:
- No
- Mounting Bolts Included:
- No
- Notes:
- Includes (4) Color coded oil pressure springs that are interchangeable by external access port. This oil pump flows 33% more volume.
Description

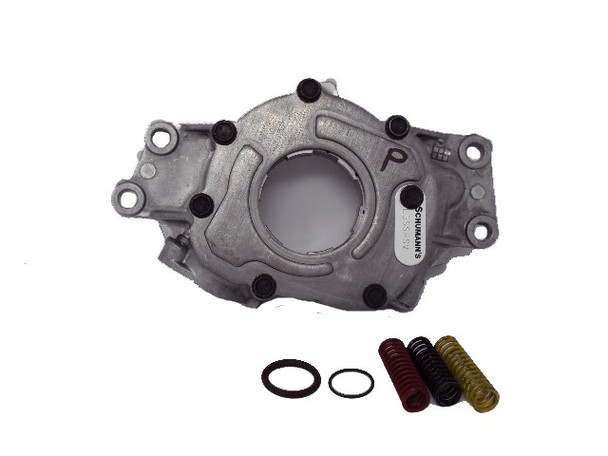

Schumann High Volume Sportsman LS Oil Pump LS-SSR-XV
Features:
- 33% Extra Volume
- O-ring seal of port to block
- 9/16 oversize outlet port to block
- Ball check technology of oil pressure/volume by-pass circuit
- (2) Viton Hi-Temp o-ring seals provided
- (4) Color coded oil pressure springs that are interchangeable by external access port. See chart below for spring color coding.
Oil pressure will vary depending upon oil temp, oil viscosity and bearing clearances. Chart below is a reference guide only.
| Spring | Cold | Hot |
| Purple* | 80-90psi | 75-85psi |
| Black | 85-105psi | 75-85psi |
| Red | 90-110psi | 85-95psi |
| Yellow | 100-115psi | 95-105psi |
*Purple Spring is pre-installed in oil pump
