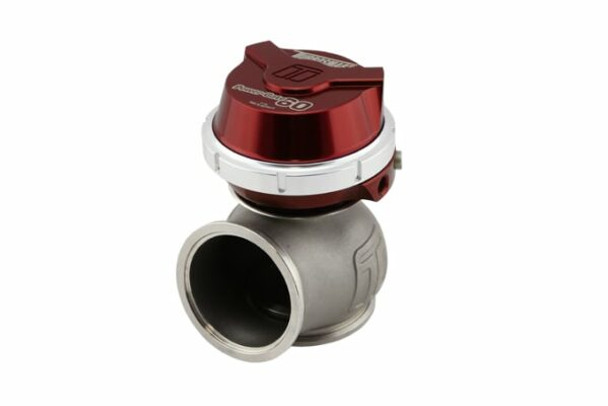

Turbosmart Gen V PowerGate60 60mm 14psi Red External Wastegate TS-0555-1014

The GenV WG60 PowerGate60 External Wastegate is a Motorsport proven, cost effective external wastegate – The largest in the Turbosmart GenV range and the Highest Flowing Wastegate in the World.

The GenV provides extensive user configurability, world leading extended thermal performance, fatigue resistance and best in class flow performance for optimum control and longevity.

The GenV External Wastegate from Turbosmart was a ground up rework of a classic and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management, the GenV range has more features, options and performance than any other gate like it.

A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360 degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.

Features
Class Leading, Thermal Performance
Class Leading, CFD & Bench Validated Flow Performance
Class Leading Fatigue Resistance
Nitronic 60 Valve Guide & High Temp 347 SS Body
17/7 PH Stainless Steel Springs
Liquid Actuator Cooling Option
Strap Type V-band clamps
User Adjustable Actuator Position
Modular Design for Actuator Interchangeability

Supplied With
GenV Wastegate unit
All Springs Included in Box
Wastegate Pre-fitted as Per Description
GenV SS316 Valve seat
GenV Inlet & Outlet V-Band Clamps
GenV Inlet & Outlet Flanges
Mounting Bolts and Nuts
Collar tool (master/slave)
4 x 1/8” NPT plugs (1x installed)
2 x 1/8” NPT nipples
Turbosmart Decal
