Turbosmart

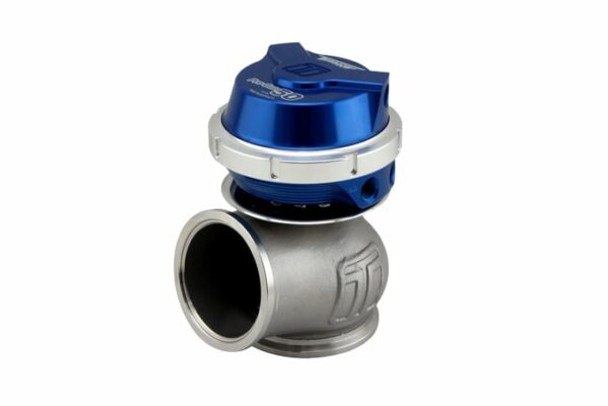

Turbosmart Gen V ProGate50 50mm 14psi External Wastegate WG50 Blue TS-0554-1011

PART NUMBER:
TS-0554-1011
UPC:
09329677018875
MPN:
TS-0554-1011
Availability:
Ships from Manufacturer
Shipping:
Free Over $98 In U.S. 48
Type:
Wastegates
Wastegate Style:
Mechanical
Wastegate Type:
External
Wastegate Valve Size:
50mm
Cap Finish:
Blue
Spring Rating:
14 psi
Note:
Fitted with a 14 psi spring.
  • Turbosmart Gen V ProGate50 50mm 14psi External Wastegate WG50 Blue TS-0554-1011
  • Turbosmart Gen V ProGate50 50mm 14psi External Wastegate WG50 Blue TS-0554-1011
  • Turbosmart Gen V ProGate50 50mm 14psi External Wastegate WG50 Blue TS-0554-1011
$529.95

Description

Turbosmart Gen V ProGate50 50mm 14psi External Wastegate WG50 Blue TS-0554-1011

The GenV WG50 ProGate50 External Wastegate is a Motorsport proven, cost effective external wastegate – The Highest Flowing 50mm External Wastegate in the World.

The GenV provides extensive user configurability, world leading extended thermal performance, fatigue resistance and best in class flow performance for optimum control and longevity.

The GenV External Wastegate from Turbosmart was a ground up rework of a classic and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management, the GenV range has more features, options and performance than any other gate like it.

A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360 degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.

Available In
Black, Blue, Red, Purple, Sleeper & Limited Edition Platinum
Wastegate Position Sensor Version & Upgrade
Compressed Gas (ex: Co2) Version

Features
Class Leading, Thermal Performance
Class Leading, CFD & Bench Validated Flow Performance
Class Leading Fatigue Resistance
Nitronic 60 Valve Guide & High Temp 347 SS Body
17/7 PH Stainless Steel Springs
Liquid Actuator Cooling Option
Strap Type V-band clamps
User Adjustable Actuator Position
Modular Design for Actuator Interchangeability

SUPPLIED WITH
GenV Wastegate unit
All Springs Included in Box
Wastegate Pre-fitted as Per Description
GenV SS316 Valve seat
GenV Inlet & Outlet V-Band Clamps
GenV Inlet & Outlet Flanges
Mounting Bolts and Nuts
Collar tool (master/slave)
4 x 1/8” NPT plugs (1x installed)
2 x 1/8” NPT nipples
Turbosmart Decal
