VORTECH SUPERCHARGERS

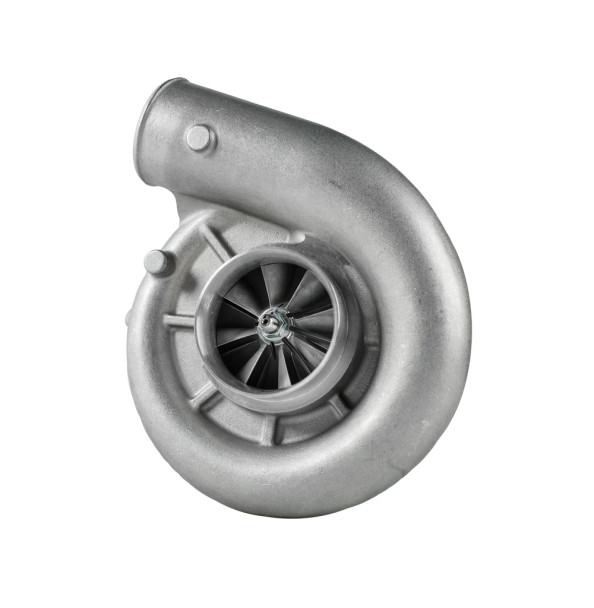

Vortech V-2 SCi-Trim Supercharger Head Unit Satin - CW Rotation/Straight Discharge

PART NUMBER:
2E128-300
MPN:
2E128-300
Availability:
Ships from Manufacturer
Shipping:
Free Over $98 In U.S. 48
Type:
Centrifugal Superchargers
Supercharger Finish:
Satin
Model:
V-2
Max Boost (psi):
17
Supercharger Trim:
SCi
MAX POWER (HP):
725
MAX FLOW (CFM):
1050
MAX IMPELLER RPM:
53000
Internal Set-Up Ratio:
3.61:1
Discharge OD (IN.):
2.75
Inlet OD (IN.):
3.50
Discharge ID (IN.):
2.38
Inducer Diameter (IN.):
3.10
$3,179.99

Description

Vortech V-2 SCi-Trim Supercharger Head Unit Satin - CW Rotation/Straight Discharge

The V-2 SQ model, with its highly advanced computer designed gears feature an optimized helical profile which allows for quieter operation while providing superior performance. All V-2 SQ units feature a 3.6:1 internal step-up ratio and are direct bolt-on replacements for our V-1 units. The supercharger uses the quieter helical cut gears (3.61:1 ratio). The V-2 SCi-Trim Supercharger is capable of up to 725HP on modified vehicles. Superior 75% peak efficiency. Ideal for latest generation of improved breathing, high-power street and strip engines.

Performance Specs

Internal Step-Up Ratio: 3.61:1
Max Speed: 53,000 RPM
Max Boost: 17 PSI
Max Flow: 1,050 CFM
Max Power: 725 HP
Peak Efficiency: 75%

Performance specs apply to units equipped with standard gearcase.

Dimensions

Discharge OD: 2.75"
Inlet OD: 3.5"
Discharge ID: 2.38"
Inducer Diameter: 3.1"
Helical cut gear profile with SQ technology
Near silent operation
Available with straight or curved discharge
Part numbers below do not include drive pulley
8.75" Wide, 9.44" Tall, 5.52" Deep (not including input shaft)
View AllClose

Warranty Information

Vortech supercharger systems for GM LS-Swaps operate at an even higher level of sophistication than any original equipment system. They're currently one of the most popular engine swap power plants in the world. In every application, the LS systems have established themselves to be fantastic platforms to swap into just about anything. They operate at an even higher level of sophistication, with a boost curve generated by Vortech's superchargers that are ideally matched with today's highly evolved engines and give you power when you need it. The supercharger and the technologically advanced subsystems fully integrate into the vehicle's existing platform, yielding a smooth continuity of power and performance.
