VORTECH SUPERCHARGERS

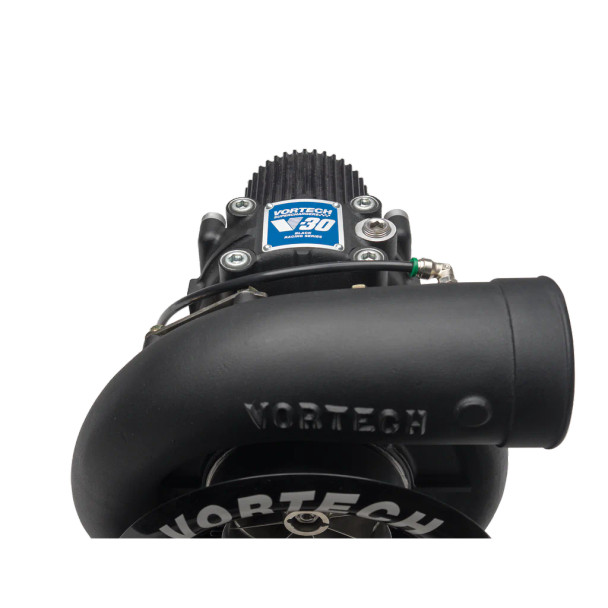

Vortech V-30 94A Race Supercharger Head Unit Black - CW Rotation/Straight Discharge

PART NUMBER:
2G458-014
MPN:
2G458-014
Availability:
Ships from Manufacturer
Shipping:
Free Over $98 In U.S. 48
Type:
Centrifugal Superchargers
Supercharger Finish:
Black
Model:
V-30 94A
Max Boost (psi):
30+
MAX POWER (HP):
1400+
MAX FLOW (CFM):
1950+
MAX IMPELLER RPM:
65000
Internal Set-Up Ratio:
4.21:1
Discharge OD (IN.):
3.00
Inlet OD (IN.):
4.00
Inducer Diameter (IN.):
3.70
  • Vortech V-30 94A Race Supercharger Head Unit Black - CW Rotation/Straight Discharge
  • Vortech V-30 94A Race Supercharger Head Unit Black - CW Rotation/Straight Discharge
  • Vortech V-30 94A Race Supercharger Head Unit Black - CW Rotation/Straight Discharge
$7,239.99

Description

Vortech V-30 94A Race Supercharger Head Unit Black - CW Rotation/Straight Discharge

The V-30 94A is the next step in compressor development, replacing the existing V-27 YSi-B, and incorporates a technologically advanced, high-efficiency, 5-Axis machined billet impeller and high-diffusion housing developed in our SAE-J1723-compliant supercharger test cell.

The V-30 Series combines the advanced technology and race-proven performance and is designed for vehicles with highly modified engines and extreme CFM/boost demands. All units feature our exclusive D-port volute for improved efficiently and require the use of a Vortech Racing Bypass Valve or larger to meet discharge flow demands. All V-30 series superchargers share a 4.21:1 internal step-up ratio and are engine oil lubricated or an auxiliary system can be fabricated. The heavy duty (H/D) configuration includes high speed, ceramic hybrid ball bearings, ideal for race applications, and is compatible with cog pulley/Gilmer style drive setups.

Performance Specs

Internal Step-Up Ratio: 4.21:1
Max Speed: 65,000 RPM
Max Boost: 30+ PSI
Max Flow: 1,950+ CFM
Max Power: 1,400+ HP
Peak Efficiency: 79%+

Dimensions

Discharge OD: 3.0"
Inlet OD: 4.0"
Inducer Diameter: 3.70"
View AllClose

Warranty Information

Vortech supercharger systems for GM LS-Swaps operate at an even higher level of sophistication than any original equipment system. They're currently one of the most popular engine swap power plants in the world. In every application, the LS systems have established themselves to be fantastic platforms to swap into just about anything. They operate at an even higher level of sophistication, with a boost curve generated by Vortech's superchargers that are ideally matched with today's highly evolved engines and give you power when you need it. The supercharger and the technologically advanced subsystems fully integrate into the vehicle's existing platform, yielding a smooth continuity of power and performance.
